Welcome to this assignment! During this week you saw how to create a model that will predict the next word in a text sequence, now you will implement such model and train it using a corpus of Shakespeare’s sonnets, while also creating some helper functions to pre-process the data.
Let’s get started!
NOTE: To prevent errors from the autograder, pleave avoid editing or deleting non-graded cells in this notebook . Please only put your solutions in between the ### START CODE HERE
and ### END CODE HERE
code comments, and also refrain from adding any new cells.
# grader-required-cell
import numpy as np
import matplotlib.pyplot as plt
from tensorflow.keras.models import Sequential
from tensorflow.keras.utils import to_categorical
from tensorflow.keras.preprocessing.text import Tokenizer
from tensorflow.keras.preprocessing.sequence import pad_sequences
from tensorflow.keras.layers import Embedding, LSTM, GRU, Dense, Bidirectional
For this assignment you will be using the Shakespeare Sonnets Dataset, which contains more than 2000 lines of text extracted from Shakespeare’s sonnets.
# grader-required-cell
# sonnets.txt
!gdown --id 108jAePKK4R3BVYBbYJZ32JWUwxeMg20K
/usr/local/lib/python3.9/dist-packages/gdown/cli.py:121: FutureWarning: Option `--id` was deprecated in version 4.3.1 and will be removed in 5.0. You don't need to pass it anymore to use a file ID.
warnings.warn(
Downloading...
From: https://drive.google.com/uc?id=108jAePKK4R3BVYBbYJZ32JWUwxeMg20K
To: /content/sonnets.txt
100% 93.6k/93.6k [00:00<00:00, 51.8MB/s]
# grader-required-cell
# Define path for file with sonnets
SONNETS_FILE = './sonnets.txt'
# Read the data
with open('./sonnets.txt') as f:
data = f.read()
# Convert to lower case and save as a list
corpus = data.lower().split("\n")
print(f"There are {len(corpus)} lines of sonnets\n")
print(f"The first 5 lines look like this:\n")
for i in range(5):
print(corpus[i])
There are 2159 lines of sonnets
The first 5 lines look like this:
from fairest creatures we desire increase,
that thereby beauty's rose might never die,
but as the riper should by time decease,
his tender heir might bear his memory:
but thou, contracted to thine own bright eyes,
Now fit the Tokenizer to the corpus and save the total number of words.
# grader-required-cell
tokenizer = Tokenizer()
tokenizer.fit_on_texts(corpus)
total_words = len(tokenizer.word_index) + 1
When converting the text into sequences you can use the texts_to_sequences
method as you have done throughout this course.
In the next graded function you will need to process this corpus one line at a time. Given this, it is important to keep in mind that the way you are feeding the data unto this method affects the result. Check the following example to make this clearer.
The first example of the corpus is a string and looks like this:
# grader-required-cell
corpus[0]
'from fairest creatures we desire increase,'
If you pass this text directly into the texts_to_sequences
method you will get an unexpected result:
# grader-required-cell
tokenizer.texts_to_sequences(corpus[0])
[[],
[],
[58],
[],
[],
[],
[17],
[6],
[],
[],
[],
[],
[],
[],
[],
[],
[17],
[],
[],
[],
[],
[],
[],
[],
[],
[],
[],
[],
[],
[6],
[],
[],
[],
[6],
[],
[],
[],
[],
[17],
[],
[],
[]]
This happened because texts_to_sequences
expects a list and you are providing a string. However a string is still and iterable
in Python so you will get the word index of every character in the string.
Instead you need to place the example whithin a list before passing it to the method:
# grader-required-cell
tokenizer.texts_to_sequences([corpus[0]])
[[34, 417, 877, 166, 213, 517]]
Notice that you received the sequence wrapped inside a list so in order to get only the desired sequence you need to explicitly get the first item in the list like this:
# grader-required-cell
tokenizer.texts_to_sequences([corpus[0]])[0]
[34, 417, 877, 166, 213, 517]
Now complete the n_gram_seqs
function below. This function receives the fitted tokenizer and the corpus (which is a list of strings) and should return a list containing the n_gram
sequences for each line in the corpus:
# grader-required-cell
# GRADED FUNCTION: n_gram_seqs
def n_gram_seqs(corpus, tokenizer):
"""
Generates a list of n-gram sequences
Args:
corpus (list of string): lines of texts to generate n-grams for
tokenizer (object): an instance of the Tokenizer class containing the word-index dictionary
Returns:
input_sequences (list of int): the n-gram sequences for each line in the corpus
"""
input_sequences = []
### START CODE HERE
for line in corpus:
token_list = tokenizer.texts_to_sequences([line])[0]
for i in range(1, len(token_list)):
input_sequences.append(token_list[:i + 1])
### END CODE HERE
return input_sequences
# grader-required-cell
# Test your function with one example
first_example_sequence = n_gram_seqs([corpus[0]], tokenizer)
print("n_gram sequences for first example look like this:\n")
first_example_sequence
n_gram sequences for first example look like this:
[[34, 417],
[34, 417, 877],
[34, 417, 877, 166],
[34, 417, 877, 166, 213],
[34, 417, 877, 166, 213, 517]]
Expected Output:
n_gram sequences for first example look like this:
[[34, 417],
[34, 417, 877],
[34, 417, 877, 166],
[34, 417, 877, 166, 213],
[34, 417, 877, 166, 213, 517]]
# grader-required-cell
# Test your function with a bigger corpus
next_3_examples_sequence = n_gram_seqs(corpus[1:4], tokenizer)
print("n_gram sequences for next 3 examples look like this:\n")
next_3_examples_sequence
n_gram sequences for next 3 examples look like this:
[[8, 878],
[8, 878, 134],
[8, 878, 134, 351],
[8, 878, 134, 351, 102],
[8, 878, 134, 351, 102, 156],
[8, 878, 134, 351, 102, 156, 199],
[16, 22],
[16, 22, 2],
[16, 22, 2, 879],
[16, 22, 2, 879, 61],
[16, 22, 2, 879, 61, 30],
[16, 22, 2, 879, 61, 30, 48],
[16, 22, 2, 879, 61, 30, 48, 634],
[25, 311],
[25, 311, 635],
[25, 311, 635, 102],
[25, 311, 635, 102, 200],
[25, 311, 635, 102, 200, 25],
[25, 311, 635, 102, 200, 25, 278]]
Expected Output:
n_gram sequences for next 3 examples look like this:
[[8, 878],
[8, 878, 134],
[8, 878, 134, 351],
[8, 878, 134, 351, 102],
[8, 878, 134, 351, 102, 156],
[8, 878, 134, 351, 102, 156, 199],
[16, 22],
[16, 22, 2],
[16, 22, 2, 879],
[16, 22, 2, 879, 61],
[16, 22, 2, 879, 61, 30],
[16, 22, 2, 879, 61, 30, 48],
[16, 22, 2, 879, 61, 30, 48, 634],
[25, 311],
[25, 311, 635],
[25, 311, 635, 102],
[25, 311, 635, 102, 200],
[25, 311, 635, 102, 200, 25],
[25, 311, 635, 102, 200, 25, 278]]
Apply the n_gram_seqs
transformation to the whole corpus and save the maximum sequence length to use it later:
# grader-required-cell
# Apply the n_gram_seqs transformation to the whole corpus
input_sequences = n_gram_seqs(corpus, tokenizer)
# Save max length
max_sequence_len = max([len(x) for x in input_sequences])
print(f"n_grams of input_sequences have length: {len(input_sequences)}")
print(f"maximum length of sequences is: {max_sequence_len}")
n_grams of input_sequences have length: 15462
maximum length of sequences is: 11
Expected Output:
n_grams of input_sequences have length: 15462
maximum length of sequences is: 11
Now code the pad_seqs
function which will pad any given sequences to the desired maximum length. Notice that this function receives a list of sequences and should return a numpy array with the padded sequences:
# grader-required-cell
# GRADED FUNCTION: pad_seqs
def pad_seqs(input_sequences, maxlen):
"""
Pads tokenized sequences to the same length
Args:
input_sequences (list of int): tokenized sequences to pad
maxlen (int): maximum length of the token sequences
Returns:
padded_sequences (array of int): tokenized sequences padded to the same length
"""
### START CODE HERE
padded_sequences = pad_sequences(sequences = input_sequences, maxlen = maxlen)
return padded_sequences
### END CODE HERE
# grader-required-cell
# Test your function with the n_grams_seq of the first example
first_padded_seq = pad_seqs(first_example_sequence, max([len(x) for x in first_example_sequence]))
first_padded_seq
array([[ 0, 0, 0, 0, 34, 417],
[ 0, 0, 0, 34, 417, 877],
[ 0, 0, 34, 417, 877, 166],
[ 0, 34, 417, 877, 166, 213],
[ 34, 417, 877, 166, 213, 517]], dtype=int32)
Expected Output:
array([[ 0, 0, 0, 0, 34, 417],
[ 0, 0, 0, 34, 417, 877],
[ 0, 0, 34, 417, 877, 166],
[ 0, 34, 417, 877, 166, 213],
[ 34, 417, 877, 166, 213, 517]], dtype=int32)
# grader-required-cell
# Test your function with the n_grams_seq of the next 3 examples
next_3_padded_seq = pad_seqs(next_3_examples_sequence, max([len(s) for s in next_3_examples_sequence]))
next_3_padded_seq
array([[ 0, 0, 0, 0, 0, 0, 8, 878],
[ 0, 0, 0, 0, 0, 8, 878, 134],
[ 0, 0, 0, 0, 8, 878, 134, 351],
[ 0, 0, 0, 8, 878, 134, 351, 102],
[ 0, 0, 8, 878, 134, 351, 102, 156],
[ 0, 8, 878, 134, 351, 102, 156, 199],
[ 0, 0, 0, 0, 0, 0, 16, 22],
[ 0, 0, 0, 0, 0, 16, 22, 2],
[ 0, 0, 0, 0, 16, 22, 2, 879],
[ 0, 0, 0, 16, 22, 2, 879, 61],
[ 0, 0, 16, 22, 2, 879, 61, 30],
[ 0, 16, 22, 2, 879, 61, 30, 48],
[ 16, 22, 2, 879, 61, 30, 48, 634],
[ 0, 0, 0, 0, 0, 0, 25, 311],
[ 0, 0, 0, 0, 0, 25, 311, 635],
[ 0, 0, 0, 0, 25, 311, 635, 102],
[ 0, 0, 0, 25, 311, 635, 102, 200],
[ 0, 0, 25, 311, 635, 102, 200, 25],
[ 0, 25, 311, 635, 102, 200, 25, 278]], dtype=int32)
Expected Output:
array([[ 0, 0, 0, 0, 0, 0, 8, 878],
[ 0, 0, 0, 0, 0, 8, 878, 134],
[ 0, 0, 0, 0, 8, 878, 134, 351],
[ 0, 0, 0, 8, 878, 134, 351, 102],
[ 0, 0, 8, 878, 134, 351, 102, 156],
[ 0, 8, 878, 134, 351, 102, 156, 199],
[ 0, 0, 0, 0, 0, 0, 16, 22],
[ 0, 0, 0, 0, 0, 16, 22, 2],
[ 0, 0, 0, 0, 16, 22, 2, 879],
[ 0, 0, 0, 16, 22, 2, 879, 61],
[ 0, 0, 16, 22, 2, 879, 61, 30],
[ 0, 16, 22, 2, 879, 61, 30, 48],
[ 16, 22, 2, 879, 61, 30, 48, 634],
[ 0, 0, 0, 0, 0, 0, 25, 311],
[ 0, 0, 0, 0, 0, 25, 311, 635],
[ 0, 0, 0, 0, 25, 311, 635, 102],
[ 0, 0, 0, 25, 311, 635, 102, 200],
[ 0, 0, 25, 311, 635, 102, 200, 25],
[ 0, 25, 311, 635, 102, 200, 25, 278]], dtype=int32)
# grader-required-cell
# Pad the whole corpus
input_sequences = pad_seqs(input_sequences, max_sequence_len)
print(f"padded corpus has shape: {input_sequences.shape}")
padded corpus has shape: (15462, 11)
Expected Output:
padded corpus has shape: (15462, 11)
Before feeding the data into the neural network you should split it into features and labels. In this case the features will be the padded n_gram sequences with the last word removed from them and the labels will be the removed word.
Complete the features_and_labels
function below. This function expects the padded n_gram sequences as input and should return a tuple containing the features and the one hot encoded labels.
Notice that the function also receives the total of words in the corpus, this parameter will be very important when one hot enconding the labels since every word in the corpus will be a label at least once. If you need a refresh of how the to_categorical
function works take a look at the docs
# grader-required-cell
# GRADED FUNCTION: features_and_labels
def features_and_labels(input_sequences, total_words):
"""
Generates features and labels from n-grams
Args:
input_sequences (list of int): sequences to split features and labels from
total_words (int): vocabulary size
Returns:
features, one_hot_labels (array of int, array of int): arrays of features and one-hot encoded labels
"""
### START CODE HERE
features = input_sequences[:, :-1]
labels = input_sequences[:,-1]
one_hot_labels = to_categorical(labels, num_classes = total_words)
### END CODE HERE
return features, one_hot_labels
# grader-required-cell
# Test your function with the padded n_grams_seq of the first example
first_features, first_labels = features_and_labels(first_padded_seq, total_words)
print(f"labels have shape: {first_labels.shape}")
print("\nfeatures look like this:\n")
first_features
labels have shape: (5, 3211)
features look like this:
array([[ 0, 0, 0, 0, 34],
[ 0, 0, 0, 34, 417],
[ 0, 0, 34, 417, 877],
[ 0, 34, 417, 877, 166],
[ 34, 417, 877, 166, 213]], dtype=int32)
Expected Output:
labels have shape: (5, 3211)
features look like this:
array([[ 0, 0, 0, 0, 34],
[ 0, 0, 0, 34, 417],
[ 0, 0, 34, 417, 877],
[ 0, 34, 417, 877, 166],
[ 34, 417, 877, 166, 213]], dtype=int32)
# grader-required-cell
# Split the whole corpus
features, labels = features_and_labels(input_sequences, total_words)
print(f"features have shape: {features.shape}")
print(f"labels have shape: {labels.shape}")
features have shape: (15462, 10)
labels have shape: (15462, 3211)
Expected Output:
features have shape: (15462, 10)
labels have shape: (15462, 3211)

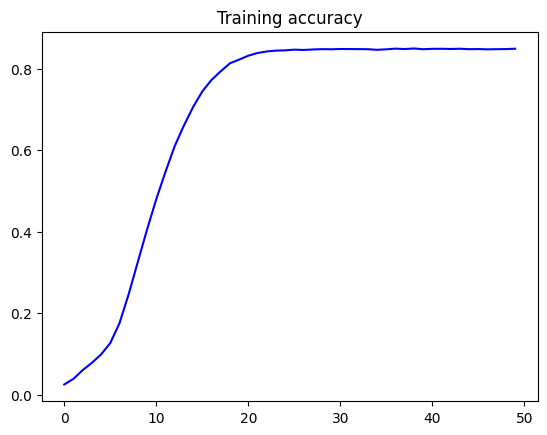

Now you should define a model architecture capable of achieving an accuracy of at least 80%.
Some hints to help you in this task:
output_dim
for the first layer (Embedding) is 100, this is already provided for you.# grader-required-cell
# GRADED FUNCTION: create_model
def create_model(total_words, max_sequence_len):
"""
Creates a text generator model
Args:
total_words (int): size of the vocabulary for the Embedding layer input
max_sequence_len (int): length of the input sequences
Returns:
model (tf.keras Model): the text generator model
"""
model = Sequential()
### START CODE HERE
model.add(Embedding(total_words + 1, 100, input_length=max_sequence_len - 1))
model.add(Bidirectional(GRU(128)))
model.add(Dense(total_words, activation="softmax"))
# Compile the model
model.compile(loss="categorical_crossentropy",
optimizer="adam",
metrics=['accuracy'])
### END CODE HERE
return model
# Get the untrained model
model = create_model(total_words, max_sequence_len)
# Train the model
history = model.fit(features, labels, epochs=50, verbose=1)
Epoch 1/50
484/484 [==============================] - 13s 20ms/step - loss: 6.8891 - accuracy: 0.0248
Epoch 2/50
484/484 [==============================] - 3s 7ms/step - loss: 6.3501 - accuracy: 0.0387
Epoch 3/50
484/484 [==============================] - 4s 8ms/step - loss: 5.9714 - accuracy: 0.0601
Epoch 4/50
484/484 [==============================] - 4s 9ms/step - loss: 5.5627 - accuracy: 0.0780
Epoch 5/50
484/484 [==============================] - 3s 7ms/step - loss: 5.1320 - accuracy: 0.0986
Epoch 6/50
484/484 [==============================] - 3s 7ms/step - loss: 4.6957 - accuracy: 0.1266
Epoch 7/50
484/484 [==============================] - 3s 7ms/step - loss: 4.2444 - accuracy: 0.1753
Epoch 8/50
484/484 [==============================] - 4s 7ms/step - loss: 3.7701 - accuracy: 0.2464
Epoch 9/50
484/484 [==============================] - 3s 7ms/step - loss: 3.2993 - accuracy: 0.3262
Epoch 10/50
484/484 [==============================] - 3s 7ms/step - loss: 2.8603 - accuracy: 0.4054
Epoch 11/50
484/484 [==============================] - 4s 8ms/step - loss: 2.4783 - accuracy: 0.4798
Epoch 12/50
484/484 [==============================] - 3s 7ms/step - loss: 2.1474 - accuracy: 0.5470
Epoch 13/50
484/484 [==============================] - 3s 6ms/step - loss: 1.8636 - accuracy: 0.6099
Epoch 14/50
484/484 [==============================] - 3s 6ms/step - loss: 1.6267 - accuracy: 0.6604
Epoch 15/50
484/484 [==============================] - 4s 8ms/step - loss: 1.4220 - accuracy: 0.7058
Epoch 16/50
484/484 [==============================] - 3s 6ms/step - loss: 1.2605 - accuracy: 0.7441
Epoch 17/50
484/484 [==============================] - 3s 7ms/step - loss: 1.1203 - accuracy: 0.7723
Epoch 18/50
484/484 [==============================] - 4s 7ms/step - loss: 1.0080 - accuracy: 0.7934
Epoch 19/50
484/484 [==============================] - 4s 7ms/step - loss: 0.9171 - accuracy: 0.8132
Epoch 20/50
484/484 [==============================] - 3s 6ms/step - loss: 0.8486 - accuracy: 0.8221
Epoch 21/50
484/484 [==============================] - 3s 6ms/step - loss: 0.7915 - accuracy: 0.8318
Epoch 22/50
484/484 [==============================] - 4s 8ms/step - loss: 0.7475 - accuracy: 0.8384
Epoch 23/50
484/484 [==============================] - 3s 7ms/step - loss: 0.7152 - accuracy: 0.8422
Epoch 24/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6943 - accuracy: 0.8443
Epoch 25/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6741 - accuracy: 0.8449
Epoch 26/50
484/484 [==============================] - 4s 8ms/step - loss: 0.6612 - accuracy: 0.8466
Epoch 27/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6519 - accuracy: 0.8459
Epoch 28/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6406 - accuracy: 0.8470
Epoch 29/50
484/484 [==============================] - 3s 7ms/step - loss: 0.6365 - accuracy: 0.8478
Epoch 30/50
484/484 [==============================] - 4s 7ms/step - loss: 0.6293 - accuracy: 0.8476
Epoch 31/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6215 - accuracy: 0.8482
Epoch 32/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6155 - accuracy: 0.8481
Epoch 33/50
484/484 [==============================] - 4s 8ms/step - loss: 0.6140 - accuracy: 0.8479
Epoch 34/50
484/484 [==============================] - 3s 7ms/step - loss: 0.6097 - accuracy: 0.8477
Epoch 35/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6089 - accuracy: 0.8463
Epoch 36/50
484/484 [==============================] - 3s 6ms/step - loss: 0.6047 - accuracy: 0.8474
Epoch 37/50
484/484 [==============================] - 4s 8ms/step - loss: 0.5999 - accuracy: 0.8491
Epoch 38/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5983 - accuracy: 0.8481
Epoch 39/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5938 - accuracy: 0.8495
Epoch 40/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5965 - accuracy: 0.8477
Epoch 41/50
484/484 [==============================] - 4s 7ms/step - loss: 0.5917 - accuracy: 0.8486
Epoch 42/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5871 - accuracy: 0.8488
Epoch 43/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5885 - accuracy: 0.8483
Epoch 44/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5832 - accuracy: 0.8489
Epoch 45/50
484/484 [==============================] - 4s 8ms/step - loss: 0.5830 - accuracy: 0.8478
Epoch 46/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5798 - accuracy: 0.8481
Epoch 47/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5790 - accuracy: 0.8474
Epoch 48/50
484/484 [==============================] - 3s 6ms/step - loss: 0.5783 - accuracy: 0.8478
Epoch 49/50
484/484 [==============================] - 4s 7ms/step - loss: 0.5768 - accuracy: 0.8480
Epoch 50/50
484/484 [==============================] - 3s 7ms/step - loss: 0.5742 - accuracy: 0.8489
To pass this assignment, your model should achieve a training accuracy of at least 80%. If your model didn’t achieve this threshold, try training again with a different model architecture, consider increasing the number of unit in your LSTM
layer.

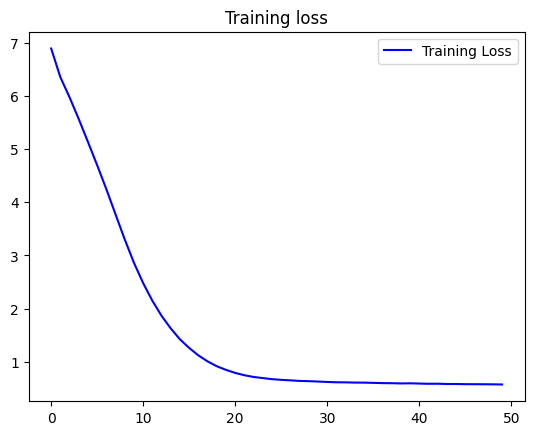

# Take a look at the training curves of your model
acc = history.history['accuracy']
loss = history.history['loss']
epochs = range(len(acc))
plt.plot(epochs, acc, 'b', label='Training accuracy')
plt.title('Training accuracy')
plt.figure()
plt.plot(epochs, loss, 'b', label='Training Loss')
plt.title('Training loss')
plt.legend()
plt.show()
Before closing the assignment, be sure to also download the history.pkl
file which contains the information of the training history of your model and will be used to compute your grade. You can download this file by running the cell below:
def download_history():
import pickle
from google.colab import files
with open('history.pkl', 'wb') as f:
pickle.dump(history.history, f)
files.download('history.pkl')
download_history()
<IPython.core.display.Javascript object>
<IPython.core.display.Javascript object>
After all your work it is finally time to see your model generating text.
Run the cell below to generate the next 100 words of a seed text.
After submitting your assignment you are encouraged to try out training for different amounts of epochs and seeing how this affects the coherency of the generated text. Also try changing the seed text to see what you get!
seed_text = "Help me Obi Wan Kenobi, you're my only hope"
next_words = 100
for _ in range(next_words):
# Convert the text into sequences
token_list = tokenizer.texts_to_sequences([seed_text])[0]
# Pad the sequences
token_list = pad_sequences([token_list], maxlen=max_sequence_len-1, padding='pre')
# Get the probabilities of predicting a word
predicted = model.predict(token_list, verbose=0)
# Choose the next word based on the maximum probability
predicted = np.argmax(predicted, axis=-1).item()
# Get the actual word from the word index
output_word = tokenizer.index_word[predicted]
# Append to the current text
seed_text += " " + output_word
print(seed_text)
Help me Obi Wan Kenobi, you're my only hope be think the lease of me must thee bright find seem love assured you ' have say more more be or than or or tomb it light not grew a lease or the face of me of love ' have ranged forbid contains me seen one assured hate be seen green twain twain ' alone again ' well now look me be so as thou art old old doom ' prove you took my grief verse before care pace still delight horse untrue thine be face from thee remain lie her friend to me you dearer ' have no old
Along with the history.pkl
file earlier, you will also need to submit your solution notebook for grading. The following code cells will check if this notebook’s grader metadata (i.e. hidden data in the notebook needed for grading) is not modified by your workspace. This will ensure that the autograder can evaluate your code properly. Depending on its output, you will either:
Download -> Download .ipynb.
You can name it anything you want as long as it is a valid .ipynb
(jupyter notebook) file.# Download metadata checker
!wget -nc https://storage.googleapis.com/tensorflow-1-public/colab_metadata_checker.py
File ‘colab_metadata_checker.py’ already there; not retrieving.
import colab_metadata_checker
# Please see the output of this cell to see which file you need to submit to the grader
colab_metadata_checker.run('C3W4_Assignment_fixed.ipynb')
Grader metadata detected! You can download this notebook by clicking `File > Download > Download as .ipynb` and submit it to the grader!
Please disregard the following note if the notebook metadata is detected
Note: Just in case the automatic download fails when the metadata is missing, you can also do these steps:
_fixed.ipynb
.Congratulations on finishing this week’s assignment!
You have successfully implemented a neural network capable of predicting the next word in a sequence of text!
We hope to see you in the next course of the specialization! Keep it up!
