Week 2: Tackle Overfitting with Data Augmentation

Welcome to this assignment! As in the previous week, you will be using the famous cats vs dogs dataset to train a model that can classify images of dogs from images of cats. For this, you will create your own Convolutional Neural Network in Tensorflow and leverage Keras’ image preprocessing utilities, more so this time around since Keras provides excellent support for augmenting image data.

You will also need to create the helper functions to move the images around the filesystem as you did last week, so if you need to refresh your memory with the os module be sure to take a look a the docs.

Let’s get started!

NOTE: To prevent errors from the autograder, pleave avoid editing or deleting non-graded cells in this notebook . Please only put your solutions in between the ### START CODE HERE and ### END CODE HERE code comments, and refrain from adding any new cells.

# grader-required-cell

import os
import zipfile
import random
import shutil
import tensorflow as tf
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from shutil import copyfile
import matplotlib.pyplot as plt

Download the dataset from its original source by running the cell below.

Note that the zip file that contains the images is unzipped under the /tmp directory.

# If the URL doesn't work, visit https://www.microsoft.com/en-us/download/confirmation.aspx?id=54765
# And right click on the 'Download Manually' link to get a new URL to the dataset

# Note: This is a very large dataset and will take some time to download

!wget --no-check-certificate \
    "https://download.microsoft.com/download/3/E/1/3E1C3F21-ECDB-4869-8368-6DEBA77B919F/kagglecatsanddogs_5340.zip" \
    -O "/tmp/cats-and-dogs.zip"

local_zip = '/tmp/cats-and-dogs.zip'
zip_ref   = zipfile.ZipFile(local_zip, 'r')
zip_ref.extractall('/tmp')
zip_ref.close()

--2023-06-02 05:27:57--  https://download.microsoft.com/download/3/E/1/3E1C3F21-ECDB-4869-8368-6DEBA77B919F/kagglecatsanddogs_5340.zip
Resolving download.microsoft.com (download.microsoft.com)... 104.97.45.22, 2600:1409:9800:984::317f, 2600:1409:9800:98c::317f
Connecting to download.microsoft.com (download.microsoft.com)|104.97.45.22|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 824887076 (787M) [application/octet-stream]
Saving to: ‘/tmp/cats-and-dogs.zip’

/tmp/cats-and-dogs. 100%[===================>] 786.67M   106MB/s    in 6.2s

2023-06-02 05:28:03 (126 MB/s) - ‘/tmp/cats-and-dogs.zip’ saved [824887076/824887076]

Now the images are stored within the /tmp/PetImages directory. There is a subdirectory for each class, so one for dogs and one for cats.

# grader-required-cell

source_path = '/tmp/PetImages'

source_path_dogs = os.path.join(source_path, 'Dog')
source_path_cats = os.path.join(source_path, 'Cat')

# Deletes all non-image files (there are two .db files bundled into the dataset)
!find /tmp/PetImages/ -type f ! -name "*.jpg" -exec rm {} +

# os.listdir returns a list containing all files under the given path
print(f"There are {len(os.listdir(source_path_dogs))} images of dogs.")
print(f"There are {len(os.listdir(source_path_cats))} images of cats.")

There are 12500 images of dogs.
There are 12500 images of cats.

Expected Output:

There are 12500 images of dogs.
There are 12500 images of cats.

You will need a directory for cats-v-dogs, and subdirectories for training and validation. These in turn will need subdirectories for ‘cats’ and ‘dogs’. To accomplish this, complete the create_train_val_dirs below:

# grader-required-cell

# Define root directory
root_dir = '/tmp/cats-v-dogs'

# Empty directory to prevent FileExistsError is the function is run several times
if os.path.exists(root_dir):
  shutil.rmtree(root_dir)

# GRADED FUNCTION: create_train_val_dirs
def create_train_val_dirs(root_path):
  """
  Creates directories for the train and test sets

  Args:
    root_path (string) - the base directory path to create subdirectories from

  Returns:
    None
  """

  ### START CODE HERE

  # HINT:
  # Use os.makedirs to create your directories with intermediate subdirectories
  # Don't hardcode the paths. Use os.path.join to append the new directories to the root_path parameter

  os.makedirs(os.path.join(root_path, "training/dogs"))
  os.makedirs(os.path.join(root_path, "training/cats"))
  os.makedirs(os.path.join(root_path, "validation/dogs"))
  os.makedirs(os.path.join(root_path, "validation/cats"))


  ### END CODE HERE


try:
  create_train_val_dirs(root_path=root_dir)
except FileExistsError:
  print("You should not be seeing this since the upper directory is removed beforehand")

# grader-required-cell

# Test your create_train_val_dirs function

for rootdir, dirs, files in os.walk(root_dir):
    for subdir in dirs:
        print(os.path.join(rootdir, subdir))

/tmp/cats-v-dogs/training
/tmp/cats-v-dogs/validation
/tmp/cats-v-dogs/training/dogs
/tmp/cats-v-dogs/training/cats
/tmp/cats-v-dogs/validation/dogs
/tmp/cats-v-dogs/validation/cats

Expected Output (directory order might vary):

>/tmp/cats-v-dogs/training
/tmp/cats-v-dogs/validation
/tmp/cats-v-dogs/training/cats
/tmp/cats-v-dogs/training/dogs
/tmp/cats-v-dogs/validation/cats
/tmp/cats-v-dogs/validation/dogs

Code the split_data function which takes in the following arguments:

The files should be randomized, so that the training set is a random sample of the files, and the validation set is made up of the remaining files.

For example, if SOURCE_DIR is PetImages/Cat, and SPLIT_SIZE is .9 then 90% of the images in PetImages/Cat will be copied to the TRAINING_DIR directory and 10% of the images will be copied to the VALIDATION_DIR directory.

All images should be checked before the copy, so if they have a zero file length, they will be omitted from the copying process. If this is the case then your function should print out a message such as "filename is zero length, so ignoring.". You should perform this check before the split so that only non-zero images are considered when doing the actual split.

Hints:

# grader-required-cell

# GRADED FUNCTION: split_data
def split_data(SOURCE_DIR, TRAINING_DIR, VALIDATION_DIR, SPLIT_SIZE):
  """
  Splits the data into train and test sets

  Args:
    SOURCE_DIR (string): directory path containing the images
    TRAINING_DIR (string): directory path to be used for training
    VALIDATION_DIR (string): directory path to be used for validation
    SPLIT_SIZE (float): proportion of the dataset to be used for training

  Returns:
    None
  """
  ### START CODE HERE
  files = []
  for filename in os.listdir(SOURCE_DIR):
    current_file = os.path.join(SOURCE_DIR, filename)
    if os.path.getsize(current_file) > 0:
      files.append(filename)
    else:
      print(f'{filename} is zero length, so ignoring.')

  training_length = int(len(files) * SPLIT_SIZE)
  testing_length = int(len(files) - training_length)
  shuffled_set = random.sample(files, len(files))
  training_set = shuffled_set[0:training_length]
  testing_set = shuffled_set[-testing_length:]

  for filename in training_set:
    src_file = os.path.join(SOURCE_DIR, filename)
    dest_file = os.path.join(TRAINING_DIR, filename)
    copyfile(src_file, dest_file)

  for filename in testing_set:
    src_file = os.path.join(SOURCE_DIR, filename)
    dest_file = os.path.join(VALIDATION_DIR, filename)
    copyfile(src_file, dest_file)

  ### END CODE HERE

# grader-required-cell

# Test your split_data function

# Define paths
CAT_SOURCE_DIR = "/tmp/PetImages/Cat/"
DOG_SOURCE_DIR = "/tmp/PetImages/Dog/"

TRAINING_DIR = "/tmp/cats-v-dogs/training/"
VALIDATION_DIR = "/tmp/cats-v-dogs/validation/"

TRAINING_CATS_DIR = os.path.join(TRAINING_DIR, "cats/")
VALIDATION_CATS_DIR = os.path.join(VALIDATION_DIR, "cats/")

TRAINING_DOGS_DIR = os.path.join(TRAINING_DIR, "dogs/")
VALIDATION_DOGS_DIR = os.path.join(VALIDATION_DIR, "dogs/")

# Empty directories in case you run this cell multiple times
if len(os.listdir(TRAINING_CATS_DIR)) > 0:
  for file in os.scandir(TRAINING_CATS_DIR):
    os.remove(file.path)
if len(os.listdir(TRAINING_DOGS_DIR)) > 0:
  for file in os.scandir(TRAINING_DOGS_DIR):
    os.remove(file.path)
if len(os.listdir(VALIDATION_CATS_DIR)) > 0:
  for file in os.scandir(VALIDATION_CATS_DIR):
    os.remove(file.path)
if len(os.listdir(VALIDATION_DOGS_DIR)) > 0:
  for file in os.scandir(VALIDATION_DOGS_DIR):
    os.remove(file.path)

# Define proportion of images used for training
split_size = .9

# Run the function
# NOTE: Messages about zero length images should be printed out
split_data(CAT_SOURCE_DIR, TRAINING_CATS_DIR, VALIDATION_CATS_DIR, split_size)
split_data(DOG_SOURCE_DIR, TRAINING_DOGS_DIR, VALIDATION_DOGS_DIR, split_size)

# Your function should perform copies rather than moving images so original directories should contain unchanged images
print(f"\n\nOriginal cat's directory has {len(os.listdir(CAT_SOURCE_DIR))} images")
print(f"Original dog's directory has {len(os.listdir(DOG_SOURCE_DIR))} images\n")

# Training and validation splits. Check that the number of images matches the expected output.
print(f"There are {len(os.listdir(TRAINING_CATS_DIR))} images of cats for training")
print(f"There are {len(os.listdir(TRAINING_DOGS_DIR))} images of dogs for training")
print(f"There are {len(os.listdir(VALIDATION_CATS_DIR))} images of cats for validation")
print(f"There are {len(os.listdir(VALIDATION_DOGS_DIR))} images of dogs for validation")

666.jpg is zero length, so ignoring.
11702.jpg is zero length, so ignoring.


Original cat's directory has 12500 images
Original dog's directory has 12500 images

There are 11249 images of cats for training
There are 11249 images of dogs for training
There are 1250 images of cats for validation
There are 1250 images of dogs for validation

Expected Output:

666.jpg is zero length, so ignoring.
11702.jpg is zero length, so ignoring.


Original cat's directory has 12500 images
Original dog's directory has 12500 images

There are 11249 images of cats for training
There are 11249 images of dogs for training
There are 1250 images of cats for validation
There are 1250 images of dogs for validation

Now that you have successfully organized the data in a way that can be easily fed to Keras’ ImageDataGenerator, it is time for you to code the generators that will yield batches of images, both for training and validation. For this, complete the train_val_generators function below.

Something important to note is that the images in this dataset come in a variety of resolutions. Luckily, the flow_from_directory method allows you to standarize this by defining a tuple called target_size that will be used to convert each image to this target resolution. For this exercise use a target_size of (150, 150).

# grader-required-cell

# GRADED FUNCTION: train_val_generators
def train_val_generators(TRAINING_DIR, VALIDATION_DIR):
  """
  Creates the training and validation data generators

  Args:
    TRAINING_DIR (string): directory path containing the training images
    VALIDATION_DIR (string): directory path containing the testing/validation images

  Returns:
    train_generator, validation_generator - tuple containing the generators
  """
  ### START CODE HERE

  # Instantiate the ImageDataGenerator class (don't forget to set the arguments to augment the images)
  train_datagen = ImageDataGenerator(rescale=1/255,
                                     rotation_range=40,
                                     width_shift_range=.2,
                                     height_shift_range=.2,
                                     shear_range=.2,
                                     zoom_range=.2,
                                     horizontal_flip=True,
                                     fill_mode="nearest")

  # Pass in the appropriate arguments to the flow_from_directory method
  train_generator = train_datagen.flow_from_directory(directory=TRAINING_DIR,
                                                      batch_size=64,
                                                      class_mode="binary",
                                                      target_size=(150, 150))

  # Instantiate the ImageDataGenerator class (don't forget to set the rescale argument)
  validation_datagen = ImageDataGenerator(rescale=1/255,
                                     rotation_range=40,
                                     width_shift_range=.2,
                                     height_shift_range=.2,
                                     shear_range=.2,
                                     zoom_range=.2,
                                     horizontal_flip=True,
                                     fill_mode="nearest")

  # Pass in the appropriate arguments to the flow_from_directory method
  validation_generator = validation_datagen.flow_from_directory(directory=VALIDATION_DIR,
                                                                batch_size=64,
                                                                class_mode="binary",
                                                                target_size=(150, 150))
  ### END CODE HERE
  return train_generator, validation_generator

# grader-required-cell

# Test your generators
train_generator, validation_generator = train_val_generators(TRAINING_DIR, VALIDATION_DIR)

Found 22498 images belonging to 2 classes.
Found 2500 images belonging to 2 classes.

Expected Output:

Found 22498 images belonging to 2 classes.
Found 2500 images belonging to 2 classes.

One last step before training is to define the architecture of the model that will be trained.

Complete the create_model function below which should return a Keras’ Sequential model.

Aside from defining the architecture of the model, you should also compile it so make sure to use a loss function that is compatible with the class_mode you defined in the previous exercise, which should also be compatible with the output of your network. You can tell if they aren’t compatible if you get an error during training.

Note that you should use at least 3 convolution layers to achieve the desired performance.

# grader-required-cell

# GRADED FUNCTION: create_model
def create_model():
  # DEFINE A KERAS MODEL TO CLASSIFY CATS V DOGS
  # USE AT LEAST 3 CONVOLUTION LAYERS

  ### START CODE HERE

  model = tf.keras.models.Sequential([
    tf.keras.layers.Conv2D(16,(3,3), activation = 'relu', input_shape=(150,150,3)),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(32,(3,3), activation = 'relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Conv2D(64,(3,3), activation = 'relu'),
    tf.keras.layers.MaxPooling2D(2,2),
    tf.keras.layers.Flatten(),
    tf.keras.layers.Dense(512, activation = 'relu'),
    tf.keras.layers.Dense(1, activation='sigmoid')
  ])


  model.compile(optimizer=tf.keras.optimizers.RMSprop(learning_rate=0.001),
                loss="binary_crossentropy",
                metrics=['accuracy'])

  ### END CODE HERE

  return model

Now it is time to train your model!

Note: You can ignore the UserWarning: Possibly corrupt EXIF data. warnings.

# Get the untrained model
model = create_model()

# Train the model
# Note that this may take some time.
history = model.fit(train_generator,
                    epochs=15,
                    verbose=1,
                    validation_data=validation_generator)

Epoch 1/15
333/352 [===========================>..] - ETA: 9s - loss: 0.6949 - accuracy: 0.5783

/usr/local/lib/python3.10/dist-packages/PIL/TiffImagePlugin.py:819: UserWarning: Truncated File Read
  warnings.warn(str(msg))


352/352 [==============================] - 208s 558ms/step - loss: 0.6908 - accuracy: 0.5828 - val_loss: 0.6033 - val_accuracy: 0.6544
Epoch 2/15
352/352 [==============================] - 193s 548ms/step - loss: 0.6082 - accuracy: 0.6676 - val_loss: 0.6658 - val_accuracy: 0.6280
Epoch 3/15
352/352 [==============================] - 193s 549ms/step - loss: 0.5808 - accuracy: 0.6945 - val_loss: 0.5436 - val_accuracy: 0.7192
Epoch 4/15
352/352 [==============================] - 200s 569ms/step - loss: 0.5495 - accuracy: 0.7186 - val_loss: 0.5187 - val_accuracy: 0.7484
Epoch 5/15
352/352 [==============================] - 194s 550ms/step - loss: 0.5341 - accuracy: 0.7304 - val_loss: 0.5165 - val_accuracy: 0.7440
Epoch 6/15
352/352 [==============================] - 193s 550ms/step - loss: 0.5189 - accuracy: 0.7393 - val_loss: 0.4907 - val_accuracy: 0.7612
Epoch 7/15
352/352 [==============================] - 194s 550ms/step - loss: 0.5047 - accuracy: 0.7506 - val_loss: 0.4751 - val_accuracy: 0.7712
Epoch 8/15
352/352 [==============================] - 194s 551ms/step - loss: 0.4863 - accuracy: 0.7651 - val_loss: 0.4648 - val_accuracy: 0.7768
Epoch 9/15
352/352 [==============================] - 192s 547ms/step - loss: 0.4737 - accuracy: 0.7750 - val_loss: 0.4711 - val_accuracy: 0.7812
Epoch 10/15
352/352 [==============================] - 194s 551ms/step - loss: 0.4613 - accuracy: 0.7814 - val_loss: 0.4330 - val_accuracy: 0.7936
Epoch 11/15
352/352 [==============================] - 192s 544ms/step - loss: 0.4509 - accuracy: 0.7883 - val_loss: 0.4026 - val_accuracy: 0.8204
Epoch 12/15
352/352 [==============================] - 192s 546ms/step - loss: 0.4381 - accuracy: 0.7956 - val_loss: 0.4969 - val_accuracy: 0.7560
Epoch 13/15
352/352 [==============================] - 193s 548ms/step - loss: 0.4248 - accuracy: 0.8040 - val_loss: 0.4740 - val_accuracy: 0.7760
Epoch 14/15
352/352 [==============================] - 189s 537ms/step - loss: 0.4137 - accuracy: 0.8114 - val_loss: 0.4221 - val_accuracy: 0.8092
Epoch 15/15
352/352 [==============================] - 190s 539ms/step - loss: 0.4011 - accuracy: 0.8182 - val_loss: 0.4010 - val_accuracy: 0.8112

Once training has finished, you can run the following cell to check the training and validation accuracy achieved at the end of each epoch.

To pass this assignment, your model should achieve a training and validation accuracy of at least 80% and the final testing accuracy should be either higher than the training one or have a 5% difference at maximum. If your model didn’t achieve these thresholds, try training again with a different model architecture, remember to use at least 3 convolutional layers or try tweaking the image augmentation process.

You might wonder why the training threshold to pass this assignment is significantly lower compared to last week’s assignment. Image augmentation does help with overfitting but usually this comes at the expense of requiring more training time. To keep the training time reasonable, the same number of epochs as in the previous assignment are kept.

However, as an optional exercise you are encouraged to try training for more epochs and to achieve really good training and validation accuracies.

#-----------------------------------------------------------
# Retrieve a list of list results on training and test data
# sets for each training epoch
#-----------------------------------------------------------
acc=history.history['accuracy']
val_acc=history.history['val_accuracy']
loss=history.history['loss']
val_loss=history.history['val_loss']

epochs=range(len(acc)) # Get number of epochs

#------------------------------------------------

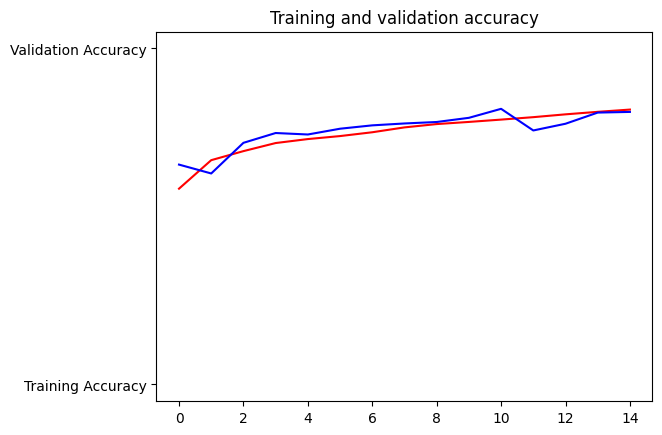

# Plot training and validation accuracy per epoch
#------------------------------------------------
plt.plot(epochs, acc, 'r', "Training Accuracy")
plt.plot(epochs, val_acc, 'b', "Validation Accuracy")
plt.title('Training and validation accuracy')
plt.show()
print("")

#------------------------------------------------

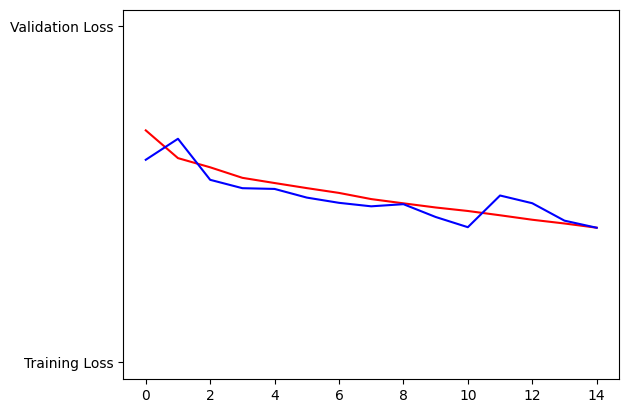

# Plot training and validation loss per epoch
#------------------------------------------------
plt.plot(epochs, loss, 'r', "Training Loss")
plt.plot(epochs, val_loss, 'b', "Validation Loss")
plt.show()

png

png

You will probably encounter that the model is overfitting, which means that it is doing a great job at classifying the images in the training set but struggles with new data. This is perfectly fine and you will learn how to mitigate this issue in the upcomming week.

Before closing the assignment, be sure to also download the history.pkl file which contains the information of the training history of your model. You can download this file by running the cell below:

def download_history():
  import pickle
  from google.colab import files

  with open('history_augmented.pkl', 'wb') as f:
    pickle.dump(history.history, f)

  files.download('history_augmented.pkl')

download_history()

<IPython.core.display.Javascript object>



<IPython.core.display.Javascript object>

Download your notebook for grading

Along with the history.pkl file, you will also need to submit your solution notebook for grading. The following code cells will check if this notebook’s grader metadata (i.e. hidden data in the notebook needed for grading) is not modified by your workspace. This will ensure that the autograder can evaluate your code properly. Depending on its output, you will either:


# Download metadata checker
!wget -nc https://storage.googleapis.com/tensorflow-1-public/colab_metadata_checker.py

--2023-06-02 06:18:29--  https://storage.googleapis.com/tensorflow-1-public/colab_metadata_checker.py
Resolving storage.googleapis.com (storage.googleapis.com)... 74.125.142.128, 74.125.195.128, 172.253.117.128, ...
Connecting to storage.googleapis.com (storage.googleapis.com)|74.125.142.128|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1997 (2.0K) [text/x-python-script]
Saving to: ‘colab_metadata_checker.py’

colab_metadata_chec 100%[===================>]   1.95K  --.-KB/s    in 0s

2023-06-02 06:18:30 (45.9 MB/s) - ‘colab_metadata_checker.py’ saved [1997/1997]

import colab_metadata_checker

# Please see the output of this cell to see which file you need to submit to the grader
colab_metadata_checker.run('C2W2_Assignment_fixed.ipynb')

Grader metadata detected! You can download this notebook by clicking `File > Download > Download as .ipynb` and submit it to the grader!

Please disregard the following note if the notebook metadata is detected

Note: Just in case the download fails for the second point above, you can also do these steps:

Congratulations on finishing this week’s assignment!

You have successfully implemented a convolutional neural network that classifies images of cats and dogs, along with the helper functions needed to pre-process the images!

Keep it up!
