Ungraded Lab: First Autoencoder

In this lab, you will build your first simple autoencoder. This will take in three-dimensional data, encodes it to two dimensions, and decodes it back to 3D.

Imports

import tensorflow as tf
from tensorflow import keras

import numpy as np
import matplotlib.pyplot as plt

%matplotlib inline

Prepare and preview the dataset

You will first create a synthetic dataset to act as input to the autoencoder. You can do that with the function below.

def generate_data(m):
    '''plots m random points on a 3D plane'''

    angles = np.random.rand(m) * 3 * np.pi / 2 - 0.5
    data = np.empty((m, 3))
    data[:,0] = np.cos(angles) + np.sin(angles)/2 + 0.1 * np.random.randn(m)/2
    data[:,1] = np.sin(angles) * 0.7 + 0.1 * np.random.randn(m) / 2
    data[:,2] = data[:, 0] * 0.1 + data[:, 1] * 0.3 + 0.1 * np.random.randn(m)

    return data

# use the function above to generate data points
X_train = generate_data(100)
X_train = X_train - X_train.mean(axis=0, keepdims=0)

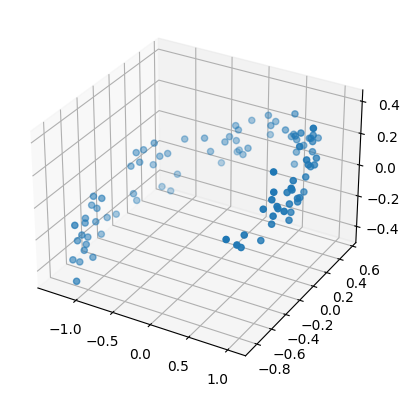

# preview the data
ax = plt.axes(projection='3d')
ax.scatter3D(X_train[:, 0], X_train[:, 1], X_train[:, 2], cmap='Reds');

<ipython-input-3-42bc7d7259f7>:7: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  ax.scatter3D(X_train[:, 0], X_train[:, 1], X_train[:, 2], cmap='Reds');

Build the Model

Now you will build the simple encoder-decoder model. Notice the number of neurons in each Dense layer. The model will contract in the encoder then expand in the decoder.

encoder = keras.models.Sequential([keras.layers.Dense(2, input_shape=[3])])
decoder = keras.models.Sequential([keras.layers.Dense(3, input_shape=[2])])

autoencoder = keras.models.Sequential([encoder, decoder])

Compile the Model

You can then setup the model for training.

autoencoder.compile(loss="mse", optimizer=keras.optimizers.SGD(lr=0.1))

WARNING:absl:`lr` is deprecated in Keras optimizer, please use `learning_rate` or use the legacy optimizer, e.g.,tf.keras.optimizers.legacy.SGD.

Train the Model

You will configure the training to also use the input data as your target output. In our example, that will be X_train.

history = autoencoder.fit(X_train, X_train, epochs=200)

Epoch 1/200
4/4 [==============================] - 6s 15ms/step - loss: 0.2580
Epoch 2/200
4/4 [==============================] - 0s 8ms/step - loss: 0.2306
Epoch 3/200
4/4 [==============================] - 0s 8ms/step - loss: 0.2063
Epoch 4/200
4/4 [==============================] - 0s 11ms/step - loss: 0.1833
Epoch 5/200
4/4 [==============================] - 0s 11ms/step - loss: 0.1651
Epoch 6/200
4/4 [==============================] - 0s 8ms/step - loss: 0.1507
Epoch 7/200
4/4 [==============================] - 0s 8ms/step - loss: 0.1382
Epoch 8/200
4/4 [==============================] - 0s 6ms/step - loss: 0.1283
Epoch 9/200
4/4 [==============================] - 0s 5ms/step - loss: 0.1203
Epoch 10/200
4/4 [==============================] - 0s 5ms/step - loss: 0.1127
Epoch 11/200
4/4 [==============================] - 0s 5ms/step - loss: 0.1053
Epoch 12/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0995
Epoch 13/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0940
Epoch 14/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0891
Epoch 15/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0848
Epoch 16/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0814
Epoch 17/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0780
Epoch 18/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0756
Epoch 19/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0733
Epoch 20/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0710
Epoch 21/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0690
Epoch 22/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0675
Epoch 23/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0662
Epoch 24/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0646
Epoch 25/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0634
Epoch 26/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0625
Epoch 27/200
4/4 [==============================] - 0s 11ms/step - loss: 0.0617
Epoch 28/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0607
Epoch 29/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0599
Epoch 30/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0592
Epoch 31/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0586
Epoch 32/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0580
Epoch 33/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0576
Epoch 34/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0571
Epoch 35/200
4/4 [==============================] - 0s 11ms/step - loss: 0.0566
Epoch 36/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0562
Epoch 37/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0559
Epoch 38/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0557
Epoch 39/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0553
Epoch 40/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0549
Epoch 41/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0547
Epoch 42/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0544
Epoch 43/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0543
Epoch 44/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0539
Epoch 45/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0536
Epoch 46/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0534
Epoch 47/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0531
Epoch 48/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0529
Epoch 49/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0526
Epoch 50/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0524
Epoch 51/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0522
Epoch 52/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0520
Epoch 53/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0519
Epoch 54/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0517
Epoch 55/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0517
Epoch 56/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0515
Epoch 57/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0514
Epoch 58/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0512
Epoch 59/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0511
Epoch 60/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0510
Epoch 61/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0509
Epoch 62/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0507
Epoch 63/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0507
Epoch 64/200
4/4 [==============================] - 0s 4ms/step - loss: 0.0505
Epoch 65/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0504
Epoch 66/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0504
Epoch 67/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0503
Epoch 68/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0502
Epoch 69/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0501
Epoch 70/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0500
Epoch 71/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0500
Epoch 72/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0499
Epoch 73/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0498
Epoch 74/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0497
Epoch 75/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0496
Epoch 76/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0496
Epoch 77/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0495
Epoch 78/200
4/4 [==============================] - 0s 11ms/step - loss: 0.0494
Epoch 79/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0493
Epoch 80/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0492
Epoch 81/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0492
Epoch 82/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0491
Epoch 83/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0491
Epoch 84/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0490
Epoch 85/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0489
Epoch 86/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0489
Epoch 87/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0488
Epoch 88/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0488
Epoch 89/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0487
Epoch 90/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0487
Epoch 91/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0486
Epoch 92/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0485
Epoch 93/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0485
Epoch 94/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0484
Epoch 95/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0484
Epoch 96/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0483
Epoch 97/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0482
Epoch 98/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0482
Epoch 99/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0481
Epoch 100/200
4/4 [==============================] - 0s 14ms/step - loss: 0.0481
Epoch 101/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0481
Epoch 102/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0480
Epoch 103/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0479
Epoch 104/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0479
Epoch 105/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0478
Epoch 106/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0478
Epoch 107/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0477
Epoch 108/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0477
Epoch 109/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0476
Epoch 110/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0476
Epoch 111/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0475
Epoch 112/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0475
Epoch 113/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0474
Epoch 114/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0474
Epoch 115/200
4/4 [==============================] - 0s 4ms/step - loss: 0.0474
Epoch 116/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0473
Epoch 117/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0472
Epoch 118/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0472
Epoch 119/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0471
Epoch 120/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0471
Epoch 121/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0471
Epoch 122/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0470
Epoch 123/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0470
Epoch 124/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0469
Epoch 125/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0469
Epoch 126/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0468
Epoch 127/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0468
Epoch 128/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0468
Epoch 129/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0467
Epoch 130/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0467
Epoch 131/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0467
Epoch 132/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0466
Epoch 133/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0466
Epoch 134/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0465
Epoch 135/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0465
Epoch 136/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0464
Epoch 137/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0464
Epoch 138/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0464
Epoch 139/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0463
Epoch 140/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0463
Epoch 141/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0463
Epoch 142/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0462
Epoch 143/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0462
Epoch 144/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0461
Epoch 145/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0461
Epoch 146/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0461
Epoch 147/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0461
Epoch 148/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0460
Epoch 149/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0460
Epoch 150/200
4/4 [==============================] - 0s 4ms/step - loss: 0.0460
Epoch 151/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0459
Epoch 152/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0459
Epoch 153/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0458
Epoch 154/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0458
Epoch 155/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0458
Epoch 156/200
4/4 [==============================] - 0s 11ms/step - loss: 0.0457
Epoch 157/200
4/4 [==============================] - 0s 13ms/step - loss: 0.0457
Epoch 158/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0457
Epoch 159/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0457
Epoch 160/200
4/4 [==============================] - 0s 12ms/step - loss: 0.0456
Epoch 161/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0456
Epoch 162/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0456
Epoch 163/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0455
Epoch 164/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0455
Epoch 165/200
4/4 [==============================] - 0s 10ms/step - loss: 0.0455
Epoch 166/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0455
Epoch 167/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0454
Epoch 168/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0454
Epoch 169/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0454
Epoch 170/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0453
Epoch 171/200
4/4 [==============================] - 0s 14ms/step - loss: 0.0453
Epoch 172/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0453
Epoch 173/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0452
Epoch 174/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0452
Epoch 175/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0452
Epoch 176/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0452
Epoch 177/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0451
Epoch 178/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0451
Epoch 179/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0451
Epoch 180/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0450
Epoch 181/200
4/4 [==============================] - 0s 11ms/step - loss: 0.0450
Epoch 182/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0450
Epoch 183/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0450
Epoch 184/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0450
Epoch 185/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0449
Epoch 186/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0449
Epoch 187/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0449
Epoch 188/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0449
Epoch 189/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0448
Epoch 190/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0448
Epoch 191/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0448
Epoch 192/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0448
Epoch 193/200
4/4 [==============================] - 0s 15ms/step - loss: 0.0447
Epoch 194/200
4/4 [==============================] - 0s 9ms/step - loss: 0.0447
Epoch 195/200
4/4 [==============================] - 0s 7ms/step - loss: 0.0447
Epoch 196/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0446
Epoch 197/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0446
Epoch 198/200
4/4 [==============================] - 0s 8ms/step - loss: 0.0446
Epoch 199/200
4/4 [==============================] - 0s 5ms/step - loss: 0.0446
Epoch 200/200
4/4 [==============================] - 0s 6ms/step - loss: 0.0446

Plot the encoder output

As mentioned, you can use the encoder to compress the input to two dimensions.

# encode the data
codings = encoder.predict(X_train)

# see a sample input-encoder output pair
print(f'input point: {X_train[0]}')
print(f'encoded point: {codings[0]}')

4/4 [==============================] - 0s 3ms/step
input point: [0.99123401 0.26140142 0.16681574]
encoded point: [-0.84345716  1.2612782 ]

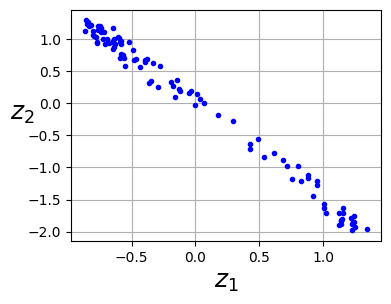

# plot all encoder outputs
fig = plt.figure(figsize=(4,3))
plt.plot(codings[:,0], codings[:, 1], "b.")
plt.xlabel("$z_1$", fontsize=18)
plt.ylabel("$z_2$", fontsize=18, rotation=0)
plt.grid(True)
plt.show()

Plot the Decoder output

The decoder then tries to reconstruct the original input. See the outputs below. You will see that although not perfect, it still follows the general shape of the original input.

# decode the encoder output
decodings = decoder.predict(codings)

# see a sample output for a single point
print(f'input point: {X_train[0]}')
print(f'encoded point: {codings[0]}')
print(f'decoded point: {decodings[0]}')

4/4 [==============================] - 0s 4ms/step
input point: [0.99123401 0.26140142 0.16681574]
encoded point: [-0.84345716  1.2612782 ]
decoded point: [0.96741295 0.28178403 0.16318715]

# plot the decoder output
ax = plt.axes(projection='3d')
ax.scatter3D(decodings[:, 0], decodings[:, 1], decodings[:, 2], c=decodings[:, 0], cmap='Reds');

That’s it for this simple demonstration of the autoencoder!
