Week 2 Assignment: CIFAR-10 Autoencoder
For this week, you will create a convolutional autoencoder for the CIFAR10 dataset. You are free to choose the architecture of your autoencoder provided that the output image has the same dimensions as the input image.
After training, your model should meet loss and accuracy requirements when evaluated with the test dataset. You will then download the model and upload it in the classroom for grading.
Let’s begin!
Important: This colab notebook has read-only access so you won’t be able to save your changes. If you want to save your work periodically, please click File -> Save a Copy in Drive to create a copy in your account, then work from there.
Imports
# Install packages for compatibility with the autograder
!pip install tensorflow==2.8.0 --quiet
!pip install keras==2.8.0 --quiet
try:
# %tensorflow_version only exists in Colab.
%tensorflow_version 2.x
except Exception:
pass
import tensorflow as tf
import tensorflow_datasets as tfds
from keras.models import Sequential
Colab only includes TensorFlow 2.x; %tensorflow_version has no effect.
Load and prepare the dataset
The CIFAR 10 dataset already has train and test splits and you can use those in this exercise. Here are the general steps:
- Load the train/test split from TFDS. Set
as_supervisedtoTrueso it will be convenient to use the preprocessing function we provided. - Normalize the pixel values to the range [0,1], then return
image, imagepairs for training instead ofimage, label. This is because you will check if the output image is successfully regenerated after going through your autoencoder. - Shuffle and batch the train set. Batch the test set (no need to shuffle).
# preprocessing function
def map_image(image, label):
image = tf.cast(image, dtype=tf.float32)
image = image / 255.0
return image, image # dataset label is not used. replaced with the same image input.
# parameters
BATCH_SIZE = 128
SHUFFLE_BUFFER_SIZE = 1024
### START CODE HERE (Replace instances of `None` with your code) ###
# use tfds.load() to fetch the 'train' split of CIFAR-10
train_dataset = tfds.load("cifar10", as_supervised=True, split="train")
# preprocess the dataset with the `map_image()` function above
train_dataset = train_dataset.map(map_image)
# shuffle and batch the dataset
train_dataset = train_dataset.shuffle(SHUFFLE_BUFFER_SIZE).batch(BATCH_SIZE)
# use tfds.load() to fetch the 'test' split of CIFAR-10
test_dataset = tfds.load("cifar10", as_supervised=True, split="test")
# preprocess the dataset with the `map_image()` function above
test_dataset = test_dataset.map(map_image)
# batch the dataset
test_dataset = test_dataset.batch(BATCH_SIZE)
### END CODE HERE ###
Build the Model
Create the autoencoder model. As shown in the lectures, you will want to downsample the image in the encoder layers then upsample it in the decoder path. Note that the output layer should be the same dimensions as the original image. Your input images will have the shape (32, 32, 3). If you deviate from this, your model may not be recognized by the grader and may fail.
We included a few hints to use the Sequential API below but feel free to remove it and use the Functional API just like in the ungraded labs if you’re more comfortable with it. Another reason to use the latter is if you want to visualize the encoder output. As shown in the ungraded labs, it will be easier to indicate multiple outputs with the Functional API. That is not required for this assignment though so you can just stack layers sequentially if you want a simpler solution.
# suggested layers to use. feel free to add or remove as you see fit.
from keras.layers import Conv2D, MaxPooling2D, UpSampling2D
# use the Sequential API (you can remove if you want to use the Functional API)
# model = Sequential()
### START CODE HERE ###
# use `model.add()` to add layers (if using the Sequential API)
# Encoder
inputs = tf.keras.layers.Input(shape=(32, 32, 3,))
conv_1 = Conv2D(filters=64, kernel_size=(3,3), activation='relu', padding='same')(inputs)
max_pool_1 = MaxPooling2D(pool_size=(2,2))(conv_1)
conv_2 = Conv2D(filters=128, kernel_size=(3,3), activation='relu', padding='same')(max_pool_1)
max_pool_2 = MaxPooling2D(pool_size=(2,2))(conv_2)
# Bottleneck
bottleneck = Conv2D(filters=256, kernel_size=(3,3), activation='sigmoid', padding='same')(max_pool_2)
# Decoder
conv_3 = Conv2D(filters=128, kernel_size=(3,3), activation='relu', padding='same')(bottleneck)
up_1 = UpSampling2D(size=(2,2))(conv_3)
conv_4 = Conv2D(filters=64, kernel_size=(3,3), activation='relu', padding='same')(up_1)
up_2 = UpSampling2D(size=(2,2))(conv_4)
autoencoder_output = Conv2D(filters=3, kernel_size=(3,3), activation='sigmoid', padding='same')(up_2)
model = tf.keras.Model(inputs=inputs, outputs=autoencoder_output)
### END CODE HERE ###
model.summary()
Model: "model"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 32, 32, 3)] 0
conv2d (Conv2D) (None, 32, 32, 64) 1792
max_pooling2d (MaxPooling2D (None, 16, 16, 64) 0
)
conv2d_1 (Conv2D) (None, 16, 16, 128) 73856
max_pooling2d_1 (MaxPooling (None, 8, 8, 128) 0
2D)
conv2d_2 (Conv2D) (None, 8, 8, 256) 295168
conv2d_3 (Conv2D) (None, 8, 8, 128) 295040
up_sampling2d (UpSampling2D (None, 16, 16, 128) 0
)
conv2d_4 (Conv2D) (None, 16, 16, 64) 73792
up_sampling2d_1 (UpSampling (None, 32, 32, 64) 0
2D)
conv2d_5 (Conv2D) (None, 32, 32, 3) 1731
=================================================================
Total params: 741,379
Trainable params: 741,379
Non-trainable params: 0
_________________________________________________________________
Configure training parameters
We have already provided the optimizer, metrics, and loss in the code below.
# Please do not change the model.compile() parameters
model.compile(optimizer='adam', metrics=['accuracy'], loss='mean_squared_error')
Training
You can now use model.fit() to train your model. You will pass in the train_dataset and you are free to configure the other parameters. As with any training, you should see the loss generally going down and the accuracy going up with each epoch. If not, please revisit the previous sections to find possible bugs.
Note: If you get a dataset length is infinite error. Please check how you defined train_dataset. You might have included a method that repeats the dataset indefinitely.
# parameters (feel free to change this)
train_steps = 100 # len(train_dataset) // BATCH_SIZE
val_steps = 50 #len(train_dataset) // BATCH_SIZE
### START CODE HERE ###
model.fit(train_dataset,
validation_data=test_dataset,
validation_steps=val_steps,
epochs=50)
### END CODE HERE ###
Epoch 1/50
391/391 [==============================] - 43s 71ms/step - loss: 0.0153 - accuracy: 0.5625 - val_loss: 0.0065 - val_accuracy: 0.7189
Epoch 2/50
391/391 [==============================] - 12s 30ms/step - loss: 0.0058 - accuracy: 0.7490 - val_loss: 0.0050 - val_accuracy: 0.7557
Epoch 3/50
391/391 [==============================] - 12s 31ms/step - loss: 0.0048 - accuracy: 0.7721 - val_loss: 0.0043 - val_accuracy: 0.7954
Epoch 4/50
391/391 [==============================] - 12s 30ms/step - loss: 0.0041 - accuracy: 0.7893 - val_loss: 0.0038 - val_accuracy: 0.8054
Epoch 5/50
391/391 [==============================] - 12s 32ms/step - loss: 0.0037 - accuracy: 0.7988 - val_loss: 0.0035 - val_accuracy: 0.8173
Epoch 6/50
391/391 [==============================] - 12s 31ms/step - loss: 0.0034 - accuracy: 0.8034 - val_loss: 0.0032 - val_accuracy: 0.7947
Epoch 7/50
172/391 [============>.................] - ETA: 5s - loss: 0.0032 - accuracy: 0.8051
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
<ipython-input-6-fb40c373c96c> in <cell line: 6>()
4
5 ### START CODE HERE ###
----> 6 model.fit(train_dataset,
7 validation_data=test_dataset,
8 validation_steps=val_steps,
/usr/local/lib/python3.10/dist-packages/keras/utils/traceback_utils.py in error_handler(*args, **kwargs)
62 filtered_tb = None
63 try:
---> 64 return fn(*args, **kwargs)
65 except Exception as e: # pylint: disable=broad-except
66 filtered_tb = _process_traceback_frames(e.__traceback__)
/usr/local/lib/python3.10/dist-packages/keras/engine/training.py in fit(self, x, y, batch_size, epochs, verbose, callbacks, validation_split, validation_data, shuffle, class_weight, sample_weight, initial_epoch, steps_per_epoch, validation_steps, validation_batch_size, validation_freq, max_queue_size, workers, use_multiprocessing)
1382 _r=1):
1383 callbacks.on_train_batch_begin(step)
-> 1384 tmp_logs = self.train_function(iterator)
1385 if data_handler.should_sync:
1386 context.async_wait()
/usr/local/lib/python3.10/dist-packages/tensorflow/python/util/traceback_utils.py in error_handler(*args, **kwargs)
148 filtered_tb = None
149 try:
--> 150 return fn(*args, **kwargs)
151 except Exception as e:
152 filtered_tb = _process_traceback_frames(e.__traceback__)
/usr/local/lib/python3.10/dist-packages/tensorflow/python/eager/def_function.py in __call__(self, *args, **kwds)
913
914 with OptionalXlaContext(self._jit_compile):
--> 915 result = self._call(*args, **kwds)
916
917 new_tracing_count = self.experimental_get_tracing_count()
/usr/local/lib/python3.10/dist-packages/tensorflow/python/eager/def_function.py in _call(self, *args, **kwds)
945 # In this case we have created variables on the first call, so we run the
946 # defunned version which is guaranteed to never create variables.
--> 947 return self._stateless_fn(*args, **kwds) # pylint: disable=not-callable
948 elif self._stateful_fn is not None:
949 # Release the lock early so that multiple threads can perform the call
/usr/local/lib/python3.10/dist-packages/tensorflow/python/eager/function.py in __call__(self, *args, **kwargs)
2954 (graph_function,
2955 filtered_flat_args) = self._maybe_define_function(args, kwargs)
-> 2956 return graph_function._call_flat(
2957 filtered_flat_args, captured_inputs=graph_function.captured_inputs) # pylint: disable=protected-access
2958
/usr/local/lib/python3.10/dist-packages/tensorflow/python/eager/function.py in _call_flat(self, args, captured_inputs, cancellation_manager)
1851 and executing_eagerly):
1852 # No tape is watching; skip to running the function.
-> 1853 return self._build_call_outputs(self._inference_function.call(
1854 ctx, args, cancellation_manager=cancellation_manager))
1855 forward_backward = self._select_forward_and_backward_functions(
/usr/local/lib/python3.10/dist-packages/tensorflow/python/eager/function.py in call(self, ctx, args, cancellation_manager)
497 with _InterpolateFunctionError(self):
498 if cancellation_manager is None:
--> 499 outputs = execute.execute(
500 str(self.signature.name),
501 num_outputs=self._num_outputs,
/usr/local/lib/python3.10/dist-packages/tensorflow/python/eager/execute.py in quick_execute(op_name, num_outputs, inputs, attrs, ctx, name)
52 try:
53 ctx.ensure_initialized()
---> 54 tensors = pywrap_tfe.TFE_Py_Execute(ctx._handle, device_name, op_name,
55 inputs, attrs, num_outputs)
56 except core._NotOkStatusException as e:
KeyboardInterrupt:
Model evaluation
You can use this code to test your model locally before uploading to the grader. To pass, your model needs to satisfy these two requirements:
- loss must be less than 0.01
- accuracy must be greater than 0.6
result = model.evaluate(test_dataset, steps=10)
10/10 [==============================] - 0s 20ms/step - loss: 0.0031 - accuracy: 0.8158
If you did some visualization like in the ungraded labs, then you might see something like the gallery below. This part is not required.
import numpy as np
import matplotlib.pyplot as plt
def display_one_row(disp_images, offset, shape=(28, 28)):
'''Display sample outputs in one row.'''
for idx, test_image in enumerate(disp_images):
plt.subplot(3, 10, offset + idx + 1)
plt.xticks([])
plt.yticks([])
test_image = np.reshape(test_image, shape)
plt.imshow(test_image, cmap='gray')
def display_results(disp_input_images, disp_encoded, disp_predicted, enc_shape=(8,4)):
'''Displays the input, encoded, and decoded output values.'''
plt.figure(figsize=(15, 5))
display_one_row(disp_input_images, 0, shape=(32,32,3))
display_one_row(disp_encoded, 10, shape=enc_shape)
display_one_row(disp_predicted, 20, shape=(32,32,3))
# take 1 batch of the dataset
test_dataset = test_dataset.take(1)
# take the input images and put them in a list
output_samples = []
for input_image, image in tfds.as_numpy(test_dataset):
output_samples = input_image
# pick 10 indices
idxs = np.array([1, 2, 3, 4, 5, 6, 7, 8, 9, 10])
# prepare test samples as a batch of 10 images
conv_output_samples = np.array(output_samples[idxs])
conv_output_samples = np.reshape(conv_output_samples, (10, 32, 32, 3))
# get the encoder ouput
encoded = model.predict(conv_output_samples)
# get a prediction for some values in the dataset
predicted = model.predict(conv_output_samples)

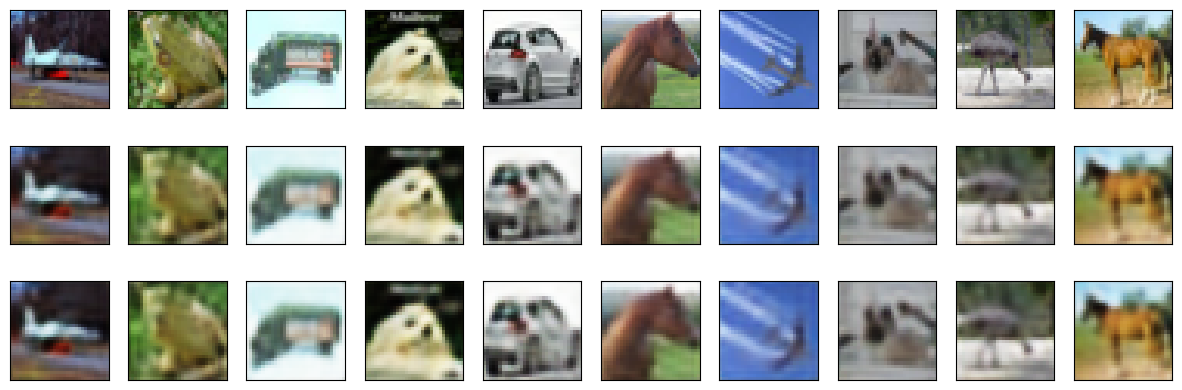

# display the samples, encodings and decoded values!
display_results(conv_output_samples, encoded, predicted, enc_shape=(32,32, 3))
Save your model
Once you are satisfied with the results, you can now save your model. Please download it from the Files window on the left and go back to the Submission portal in Coursera for grading.
model.save('mymodel.h5')
Congratulations on completing this week’s assignment!
