Ungraded Lab: Keras custom callbacks

A custom callback is a powerful tool to customize the behavior of a Keras model during training, evaluation, or inference. Towards the end of this guide, there will be demos of creating a couple of simple callback applications to get you started on your custom callback.

Imports

import tensorflow as tf
import matplotlib.pyplot as plt
import numpy as np

import datetime
import io

from PIL import Image
from IPython.display import Image as IPyImage
import imageio

print("Version: ", tf.__version__)
tf.get_logger().setLevel('INFO')

Version:  2.1.0

# Define the Keras model to add callbacks to
def get_model():
    model = tf.keras.Sequential()
    model.add(tf.keras.layers.Dense(1, activation = 'linear', input_dim = 784))
    model.compile(optimizer=tf.keras.optimizers.RMSprop(lr=0.1), loss='mean_squared_error', metrics=['mae'])
    return model

Then, load the MNIST data for training and testing from Keras datasets API:

# Load example MNIST data and pre-process it
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.mnist.load_data()
x_train = x_train.reshape(60000, 784).astype('float32') / 255
x_test = x_test.reshape(10000, 784).astype('float32') / 255

Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz
11493376/11490434 [==============================] - 0s 0us/step

Now, define a simple custom callback to track the start and end of every batch of data. During those calls, it prints the index of the current batch.

class MyCustomCallback(tf.keras.callbacks.Callback):

    def on_train_batch_begin(self, batch, logs=None):
        print('Training: batch {} begins at {}'.format(batch, datetime.datetime.now().time()))

    def on_train_batch_end(self, batch, logs=None):
        print('Training: batch {} ends at {}'.format(batch, datetime.datetime.now().time()))

Providing a callback to model methods such as tf.keras.Model.fit() ensures the methods are called at those stages:

model = get_model()
_ = model.fit(x_train, y_train,
          batch_size=64,
          epochs=1,
          steps_per_epoch=5,
          verbose=0,
          callbacks=[MyCustomCallback()])

Training: batch 0 begins at 06:30:54.907297
Training: batch 0 ends at 06:30:56.791141
Training: batch 1 begins at 06:30:56.791765
Training: batch 1 ends at 06:30:56.794285
Training: batch 2 begins at 06:30:56.794651
Training: batch 2 ends at 06:30:56.797752
Training: batch 3 begins at 06:30:56.798437
Training: batch 3 ends at 06:30:56.897244
Training: batch 4 begins at 06:30:56.897707
Training: batch 4 ends at 06:30:56.991721

An overview of callback methods

Common methods for training/testing/predicting

For training, testing, and predicting, following methods are provided to be overridden.

on_(train|test|predict)_begin(self, logs=None)

Called at the beginning of fit/evaluate/predict.

on_(train|test|predict)_end(self, logs=None)

Called at the end of fit/evaluate/predict.

on_(train|test|predict)_batch_begin(self, batch, logs=None)

Called right before processing a batch during training/testing/predicting. Within this method, logs is a dict with batch and size available keys, representing the current batch number and the size of the batch.

on_(train|test|predict)_batch_end(self, batch, logs=None)

Called at the end of training/testing/predicting a batch. Within this method, logs is a dict containing the stateful metrics result.

Training specific methods

In addition, for training, following are provided.

on_epoch_begin(self, epoch, logs=None)

Called at the beginning of an epoch during training.

on_epoch_end(self, epoch, logs=None)

Called at the end of an epoch during training.

Usage of logs dict

The logs dict contains the loss value, and all the metrics at the end of a batch or epoch. Example includes the loss and mean absolute error.

callback = tf.keras.callbacks.LambdaCallback(
    on_epoch_end=lambda epoch,logs:
    print("Epoch: {}, Val/Train loss ratio: {:.2f}".format(epoch, logs["val_loss"] / logs["loss"]))
)

model = get_model()
_ = model.fit(x_train, y_train,
          validation_data=(x_test, y_test),
          batch_size=64,
          epochs=3,
          verbose=0,
          callbacks=[callback])

Epoch: 0, Val/Train loss ratio: 0.80
Epoch: 1, Val/Train loss ratio: 0.68
Epoch: 2, Val/Train loss ratio: 1.04

class DetectOverfittingCallback(tf.keras.callbacks.Callback):
    def __init__(self, threshold=0.7):
        super(DetectOverfittingCallback, self).__init__()
        self.threshold = threshold

    def on_epoch_end(self, epoch, logs=None):
        ratio = logs["val_loss"] / logs["loss"]
        print("Epoch: {}, Val/Train loss ratio: {:.2f}".format(epoch, ratio))

        if ratio > self.threshold:
            print("Stopping training...")
            self.model.stop_training = True

model = get_model()
_ = model.fit(x_train, y_train,
              validation_data=(x_test, y_test),
              batch_size=64,
              epochs=3,
              verbose=0,
              callbacks=[DetectOverfittingCallback()])

Epoch: 0, Val/Train loss ratio: 1.35
Stopping training...

Similarly, one can provide callbacks in evaluate() calls.

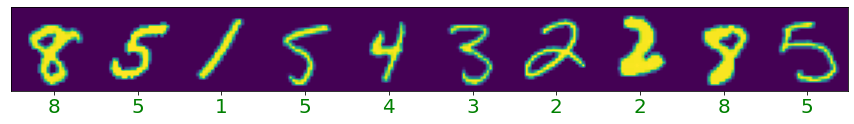

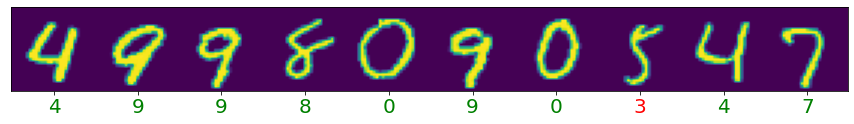

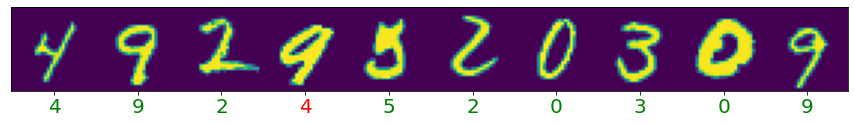

Custom callback to Visualize predictions

# Load example MNIST data and pre-process it
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.mnist.load_data()
x_train = x_train.reshape(60000, 784).astype('float32') / 255
x_test = x_test.reshape(10000, 784).astype('float32') / 255

# Visualization utilities
plt.rc('font', size=20)
plt.rc('figure', figsize=(15, 3))

def display_digits(inputs, outputs, ground_truth, epoch, n=10):
    plt.clf()

    plt.yticks([])
    plt.grid(None)
    inputs = np.reshape(inputs, [n, 28, 28])
    inputs = np.swapaxes(inputs, 0, 1)
    inputs = np.reshape(inputs, [28, 28*n])
    plt.imshow(inputs)
    plt.xticks([28*x+14 for x in range(n)], outputs)
    for i,t in enumerate(plt.gca().xaxis.get_ticklabels()):
        if outputs[i] == ground_truth[i]:
            t.set_color('green')
        else:
            t.set_color('red')
    plt.grid(None)

GIF_PATH = './animation.gif'

class VisCallback(tf.keras.callbacks.Callback):
    def __init__(self, inputs, ground_truth, display_freq=10, n_samples=10):
        self.inputs = inputs
        self.ground_truth = ground_truth
        self.images = []
        self.display_freq = display_freq
        self.n_samples = n_samples

    def on_epoch_end(self, epoch, logs=None):
        # Randomly sample data
        indexes = np.random.choice(len(self.inputs), size=self.n_samples)
        X_test, y_test = self.inputs[indexes], self.ground_truth[indexes]
        predictions = np.argmax(self.model.predict(X_test), axis=1)

        # Plot the digits
        display_digits(X_test, predictions, y_test, epoch, n=self.n_samples)

        # Save the figure
        buf = io.BytesIO()
        plt.savefig(buf, format='png')
        buf.seek(0)
        image = Image.open(buf)
        self.images.append(np.array(image))

        # Display the digits every 'display_freq' number of epochs
        if epoch % self.display_freq == 0:
            plt.show()

    def on_train_end(self, logs=None):
        imageio.mimsave(GIF_PATH, self.images, fps=1)

def get_model():
    model = tf.keras.Sequential()
    model.add(tf.keras.layers.Dense(32, activation='linear', input_dim=784))
    model.add(tf.keras.layers.Dense(10, activation='softmax'))
    model.compile(optimizer=tf.keras.optimizers.RMSprop(lr=1e-4), loss='sparse_categorical_crossentropy', metrics=['accuracy'])
    return model

model = get_model()
model.fit(x_train, y_train,
          batch_size=64,
          epochs=20,
          verbose=0,
          callbacks=[VisCallback(x_test, y_test)])

<tensorflow.python.keras.callbacks.History at 0x7f9c6b760e10>

SCALE = 60

# FYI, the format is set to PNG here to bypass checks for acceptable embeddings
IPyImage(GIF_PATH, format='png', width=15 * SCALE, height=3 * SCALE)
