Ungraded lab: Shapley Values

Welcome, during this ungraded lab you are going to be working with SHAP (SHapley Additive exPlanations). This procedure is derived from game theory and aims to understand (or explain) the output of any machine learning model. In particular you will:

Train a simple CNN on the fashion mnist dataset.
Compute the Shapley values for examples of each class.
Visualize these values and derive information from them.

To learn more about Shapley Values visit the official SHAP repo.

Let’s get started!

Imports

Begin by installing the shap library:

!pip install shap
!pip install tensorflow==2.4.3

Collecting shap
  Downloading shap-0.42.1-cp310-cp310-manylinux_2_12_x86_64.manylinux2010_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (547 kB)
[2K     [90m━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━[0m [32m547.9/547.9 kB[0m [31m8.2 MB/s[0m eta [36m0:00:00[0m
[?25hRequirement already satisfied: numpy in /usr/local/lib/python3.10/dist-packages (from shap) (1.23.5)
Requirement already satisfied: scipy in /usr/local/lib/python3.10/dist-packages (from shap) (1.10.1)
Requirement already satisfied: scikit-learn in /usr/local/lib/python3.10/dist-packages (from shap) (1.2.2)
Requirement already satisfied: pandas in /usr/local/lib/python3.10/dist-packages (from shap) (1.5.3)
Requirement already satisfied: tqdm>=4.27.0 in /usr/local/lib/python3.10/dist-packages (from shap) (4.66.1)
Requirement already satisfied: packaging>20.9 in /usr/local/lib/python3.10/dist-packages (from shap) (23.1)
Collecting slicer==0.0.7 (from shap)
  Downloading slicer-0.0.7-py3-none-any.whl (14 kB)
Requirement already satisfied: numba in /usr/local/lib/python3.10/dist-packages (from shap) (0.56.4)
Requirement already satisfied: cloudpickle in /usr/local/lib/python3.10/dist-packages (from shap) (2.2.1)
Requirement already satisfied: llvmlite<0.40,>=0.39.0dev0 in /usr/local/lib/python3.10/dist-packages (from numba->shap) (0.39.1)
Requirement already satisfied: setuptools in /usr/local/lib/python3.10/dist-packages (from numba->shap) (67.7.2)
Requirement already satisfied: python-dateutil>=2.8.1 in /usr/local/lib/python3.10/dist-packages (from pandas->shap) (2.8.2)
Requirement already satisfied: pytz>=2020.1 in /usr/local/lib/python3.10/dist-packages (from pandas->shap) (2023.3)
Requirement already satisfied: joblib>=1.1.1 in /usr/local/lib/python3.10/dist-packages (from scikit-learn->shap) (1.3.2)
Requirement already satisfied: threadpoolctl>=2.0.0 in /usr/local/lib/python3.10/dist-packages (from scikit-learn->shap) (3.2.0)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.10/dist-packages (from python-dateutil>=2.8.1->pandas->shap) (1.16.0)
Installing collected packages: slicer, shap
Successfully installed shap-0.42.1 slicer-0.0.7
[31mERROR: Could not find a version that satisfies the requirement tensorflow==2.4.3 (from versions: 2.8.0rc0, 2.8.0rc1, 2.8.0, 2.8.1, 2.8.2, 2.8.3, 2.8.4, 2.9.0rc0, 2.9.0rc1, 2.9.0rc2, 2.9.0, 2.9.1, 2.9.2, 2.9.3, 2.10.0rc0, 2.10.0rc1, 2.10.0rc2, 2.10.0rc3, 2.10.0, 2.10.1, 2.11.0rc0, 2.11.0rc1, 2.11.0rc2, 2.11.0, 2.11.1, 2.12.0rc0, 2.12.0rc1, 2.12.0, 2.12.1, 2.13.0rc0, 2.13.0rc1, 2.13.0rc2, 2.13.0, 2.14.0rc0)[0m[31m
[0m[31mERROR: No matching distribution found for tensorflow==2.4.3[0m[31m
[0m

Now import all necessary dependencies:

import shap
import numpy as np
import tensorflow as tf
from tensorflow import keras
import matplotlib.pyplot as plt

Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)

Train a CNN model

For this lab you will use the fashion MNIST dataset. Load it and pre-process the data before feeding it into the model:

# Download the dataset
(x_train, y_train), (x_test, y_test) = keras.datasets.fashion_mnist.load_data()

# Reshape and normalize data
x_train = x_train.reshape(60000, 28, 28, 1).astype("float32") / 255
x_test = x_test.reshape(10000, 28, 28, 1).astype("float32") / 255

Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/train-labels-idx1-ubyte.gz
29515/29515 [==============================] - 0s 1us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/train-images-idx3-ubyte.gz
26421880/26421880 [==============================] - 2s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/t10k-labels-idx1-ubyte.gz
5148/5148 [==============================] - 0s 0us/step
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/t10k-images-idx3-ubyte.gz
4422102/4422102 [==============================] - 1s 0us/step

For the CNN model you will use a simple architecture composed of a single convolutional and maxpooling layers pair connected to a fully conected layer with 256 units and the output layer with 10 units since there are 10 categories.

Define the model using Keras’ Functional API:

# Define the model architecture using the functional API
inputs = keras.Input(shape=(28, 28, 1))
x = keras.layers.Conv2D(32, (3, 3), activation='relu')(inputs)
x = keras.layers.MaxPooling2D((2, 2))(x)
x = keras.layers.Flatten()(x)
x = keras.layers.Dense(256, activation='relu')(x)
outputs = keras.layers.Dense(10, activation='softmax')(x)

# Create the model with the corresponding inputs and outputs
model = keras.Model(inputs=inputs, outputs=outputs, name="CNN")

# Compile the model
model.compile(
      loss=tf.keras.losses.SparseCategoricalCrossentropy(),
      optimizer=keras.optimizers.Adam(),
      metrics=[tf.keras.metrics.SparseCategoricalAccuracy()]
  )

# Train it!
model.fit(x_train, y_train, epochs=5, validation_data=(x_test, y_test))

Epoch 1/5
1875/1875 [==============================] - 19s 4ms/step - loss: 0.3755 - sparse_categorical_accuracy: 0.8651 - val_loss: 0.3296 - val_sparse_categorical_accuracy: 0.8743
Epoch 2/5
1875/1875 [==============================] - 6s 3ms/step - loss: 0.2488 - sparse_categorical_accuracy: 0.9083 - val_loss: 0.2639 - val_sparse_categorical_accuracy: 0.9040
Epoch 3/5
1875/1875 [==============================] - 8s 4ms/step - loss: 0.2014 - sparse_categorical_accuracy: 0.9250 - val_loss: 0.2562 - val_sparse_categorical_accuracy: 0.9048
Epoch 4/5
1875/1875 [==============================] - 8s 4ms/step - loss: 0.1688 - sparse_categorical_accuracy: 0.9366 - val_loss: 0.2450 - val_sparse_categorical_accuracy: 0.9125
Epoch 5/5
1875/1875 [==============================] - 7s 4ms/step - loss: 0.1421 - sparse_categorical_accuracy: 0.9473 - val_loss: 0.2507 - val_sparse_categorical_accuracy: 0.9142





<keras.callbacks.History at 0x7c412aa1c370>

Judging the accuracy metrics looks like the model is overfitting. However, it is achieving a >90% accuracy on the test set so its performance is adequate for the purposes of this lab.

Explaining the outputs

You know that the model is correctly classifying around 90% of the images in the test set. But how is it doing it? What pixels are being used to determine if an image belongs to a particular class?

To answer these questions you can use SHAP values.

Before doing so, check how each one of the categories looks like:

# Name each one of the classes
class_names = ['T-shirt/top', 'Trouser', 'Pullover', 'Dress', 'Coat',
               'Sandal', 'Shirt', 'Sneaker', 'Bag', 'Ankle boot']

# Save an example for each category in a dict
images_dict = dict()
for i, l in enumerate(y_train):
  if len(images_dict)==10:
    break
  if l not in images_dict.keys():
    images_dict[l] = x_train[i].reshape((28, 28))

# Function to plot images
def plot_categories(images):
  fig, axes = plt.subplots(1, 11, figsize=(16, 15))
  axes = axes.flatten()

  # Plot an empty canvas
  ax = axes[0]
  dummy_array = np.array([[[0, 0, 0, 0]]], dtype='uint8')
  ax.set_title("reference")
  ax.set_axis_off()
  ax.imshow(dummy_array, interpolation='nearest')

  # Plot an image for every category
  for k,v in images.items():
    ax = axes[k+1]
    ax.imshow(v, cmap=plt.cm.binary)
    ax.set_title(f"{class_names[k]}")
    ax.set_axis_off()

  plt.tight_layout()
  plt.show()


# Use the function to plot

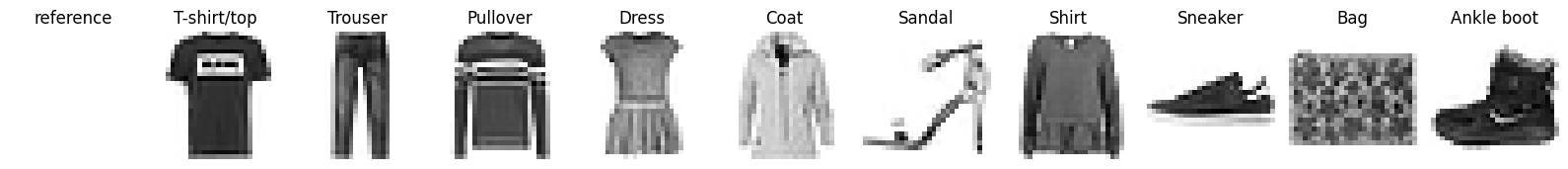

plot_categories(images_dict)

png

Now you know how the items in each one of the categories looks like.

You might wonder what the empty image at the left is for. You will see shortly why it is important.

DeepExplainer

To compute shap values for the model you just trained you will use the DeepExplainer class from the shap library.

To instantiate this class you need to pass in a model along with training examples. Notice that not all of the training examples are passed in but only a fraction of them.

This is done because the computations done by the DeepExplainer object are very intensive on the RAM and you might run out of it.

# Take a random sample of 5000 training images
background = x_train[np.random.choice(x_train.shape[0], 5000, replace=False)]

# Use DeepExplainer to explain predictions of the model
e = shap.DeepExplainer(model, background)

# Compute shap values
# shap_values = e.shap_values(x_test[1:5])

keras is no longer supported, please use tf.keras instead.
Your TensorFlow version is newer than 2.4.0 and so graph support has been removed in eager mode and some static graphs may not be supported. See PR #1483 for discussion.

Now you can use the DeepExplainer instance to compute Shap values for images on the test set.

So you can properly visualize these values for each class, create an array that contains one element of each class from the test set:

# Save an example of each class from the test set
x_test_dict = dict()
for i, l in enumerate(y_test):
  if len(x_test_dict)==10:
    break
  if l not in x_test_dict.keys():
    x_test_dict[l] = x_test[i]

# Convert to list preserving order of classes
x_test_each_class = [x_test_dict[i] for i in sorted(x_test_dict)]

# Convert to tensor
x_test_each_class = np.asarray(x_test_each_class)

# Print shape of tensor
print(f"x_test_each_class tensor has shape: {x_test_each_class.shape}")

x_test_each_class tensor has shape: (10, 28, 28, 1)

Before computing the shap values, make sure that the model is able to correctly classify each one of the examples you just picked:

# Compute predictions
predictions = model.predict(x_test_each_class)

# Apply argmax to get predicted class
np.argmax(predictions, axis=1)

1/1 [==============================] - 0s 102ms/step





array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])

Since the test examples are ordered according to the class number and the predictions array is also ordered, the model was able to correctly classify each one of these images.

Visualizing Shap Values

Now that you have an example of each class, compute the Shap values for each example:

# Compute shap values using DeepExplainer instance
shap_values = e.shap_values(x_test_each_class)

`tf.keras.backend.set_learning_phase` is deprecated and will be removed after 2020-10-11. To update it, simply pass a True/False value to the `training` argument of the `__call__` method of your layer or model.

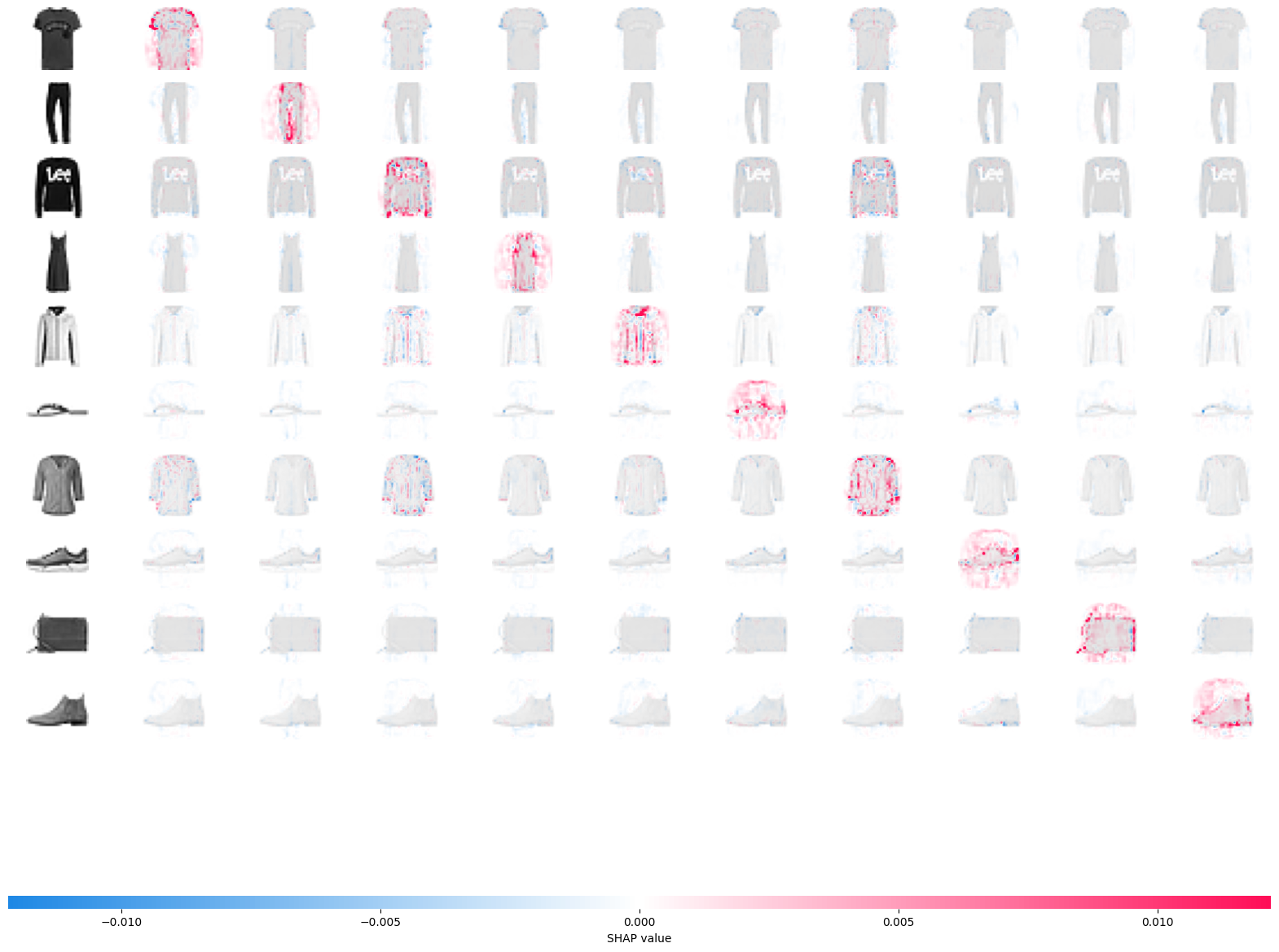

Now take a look at the computed shap values. To understand the next illustration have these points in mind:

Positive shap values are denoted by red color and they represent the pixels that contributed to classifying that image as that particular class.
Negative shap values are denoted by blue color and they represent the pixels that contributed to NOT classify that image as that particular class.
Each row contains each one of the test images you computed the shap values for.
Each column represents the ordered categories that the model could choose from. Notice that shap.image_plot just makes a copy of the classified image, but you can use the plot_categories function you created earlier to show an example of that class for reference.

# Plot reference column
plot_categories(images_dict)

# Print an empty line to separate the two plots
print()

# Plot shap values
shap.image_plot(shap_values, -x_test_each_class)

png

Now take some time to understand what the plot is showing you. Since the model is able to correctly classify each one of these 10 images, it makes sense that the shapley values along the diagonal are the most prevalent. Specially positive values since that is the class the model (correctly) predicted.

What else can you derive from this plot? Try focusing on one example. For instance focus on the coat which is the fifth class. Looks like the model also had “reasons” to classify it as pullover or a shirt. This can be concluded from the presence of positive shap values for these clases.

Let’s take a look at the tensor of predictions to double check if this was the case:

# Save the probability of belonging to each class for the fifth element of the set
coat_probs = predictions[4]

# Order the probabilities in ascending order
coat_args = np.argsort(coat_probs)

# Reverse the list and get the top 3 probabilities
top_coat_args = coat_args[::-1][:3]

# Print (ordered) top 3 classes
for i in list(top_coat_args):
  print(class_names[i])

Coat
Pullover
Shirt

Indeed the model selected these 3 classes as the most probable ones for the coat image. This makes sense since these objects are similar to each other.

Now look at the t-shirt which is the first class. This object is very similar to the pullover but without the long sleeves. It is not a surprise that white pixels in the area where the long sleeves are present will yield high shap values for classifying as a t-shirt. In the same way, white pixels in this area will yield negative shap values for classifying as a pullover since the model will expect these pixels to be colored if the item was indeed a pullover.

You can get a lot of insight repeating this process for all the classes. What other conclusions can you arrive at?

Congratulations on finishing this ungraded lab! Now you should have a clearer understanding of what Shapley values are, why they are useful and how to compute them using the shap library.

Deep Learning models were considered black boxes for a very long time. There is a natural trade off between predicting power and explanaibility in Machine Learning but thanks to the rise of new techniques such as SHapley Additive exPlanations it is easier than never before to explain the outputs of Deep Learning models.

Keep it up!
