Neural Radiance Fields (NeRF)

Please note that this is an optional notebook meant to introduce more advanced concepts. If you’re up for a challenge, take a look and don’t worry if you can’t follow everything. There is no code to implement—only some cool code for you to learn and run!

Goals

In this notebook, you’ll learn how to use Neural Radiance Fields to generate new views of a complex 3D scene using only a couple input views, first proposed by NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis (Mildenhall et al. 2020). Though 2D GANs have seen success in high-resolution image synthesis, NeRF has quickly become a popular technique to enable high-resolution 3D-aware GANs.

Water fountain Water fountain Synthetic Lego Dataset

Image Credit: Matthew Tancik

Overview

NeRF is an approach for novel view synthesis, where given some input images of a scene and cooresponding camera poses, we want to generate new images of the same scene from arbitrary camera poses. Because training a full NeRF can take hours to days, we will study a feature-limited tiny NeRF (official GitHub) to train faster, while highlighting the major differences.

How does NeRF work?

NeRF represents a scene as a function mapping position and direction to color and volumetric density (how opaque is this object?), $F_\Theta : (x, y, z, \theta, \phi) \mapsto (R, G, B, \sigma)$. The authors then use these colors and densities with classic volume rendering techniques to compose these values into an image.

NeRF represents this mapping with a simple Multilayer Perceptron (MLP), which is differentiable and thus allows for explicit optimization by comparing the synthesized with the ground truth images.

NeRF Pipeline Image credit: Official GitHub

Getting Started

import os
import numpy as np
import matplotlib.pyplot as plt
import torch
from torch import nn
import torch.nn.functional as F
device = "cuda" if torch.cuda.is_available() else "cpu"

def batch_generator(inputs, batch_size):
    """
    Generates batches of `batch_size` from `inputs` array.
    """
    l = inputs.shape[0]
    for i in range(0, l, batch_size):
        yield inputs[i:min(i + batch_size, l)]

Let’s load our data from the official NeRF GitHub and plot a holdout image

if not os.path.exists('tiny_nerf_data.npz'):
    !wget https://bmild.github.io/nerf/tiny_nerf_data.npz

data = np.load('tiny_nerf_data.npz')
images = data['images']
poses = data['poses']
focal = data['focal']
print(images.shape, poses.shape, focal)

testimg, testpose = images[101], poses[101]
# use the first 100 images for training
images = images[:100,...,:3]
poses = poses[:100]

plt.imshow(testimg)
plt.show()

images = torch.from_numpy(images).to(device)
poses = torch.from_numpy(poses).to(device)
testimg = torch.from_numpy(testimg).to(device)
testpose = torch.from_numpy(testpose).to(device)

--2022-04-23 23:35:47--  https://bmild.github.io/nerf/tiny_nerf_data.npz
Resolving bmild.github.io (bmild.github.io)... 185.199.111.153, 185.199.108.153, 185.199.109.153, ...
Connecting to bmild.github.io (bmild.github.io)|185.199.111.153|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 12727482 (12M) [application/octet-stream]
Saving to: ‘tiny_nerf_data.npz’

tiny_nerf_data.npz  100%[===================>]  12.14M  --.-KB/s    in 0.1s

2022-04-23 23:35:47 (111 MB/s) - ‘tiny_nerf_data.npz’ saved [12727482/12727482]

(106, 100, 100, 3) (106, 4, 4) 138.88887889922103

png

We define a function to compute the rays passing through an image from a given position.

def get_rays(height, width, focal_length, cam2world):
    """
    Compute the rays (origins and directions) passing through an image with
    `height` and `width` (in pixels). `focal_length` (in pixels) is a property
    of the camera. `cam2world` represents and transform tensor from a 3D point
    in the "camera" frame of reference to the "world" frame of reference (the
    `pose` in our dataset).
    """
    i, j = torch.meshgrid(
        torch.arange(width).to(cam2world),
        torch.arange(height).to(cam2world),
        indexing="xy"
    )
    dirs = torch.stack([
        (i.cpu() - width / 2) / focal_length,
        - (j.cpu() - height / 2) / focal_length,
        - torch.ones_like(i.cpu())
    ], dim=-1).to(cam2world)
    rays_d = torch.sum(dirs[..., None, :] * cam2world[:3, :3], dim=-1)
    rays_o = cam2world[:3, -1].expand(rays_d.shape)
    return rays_o, rays_d

Building NeRF

Positional Encoding

To better model high-frequency functions, the authors use an encoding function defined

$$\gamma(p) = (\sin(2^0 \pi p), \cos(2^0 \pi p), \dots, \sin(2^{L-1} \pi p), \cos(2^{L-1} \pi p)).$$

In the NeRF architecture, $\gamma$ is applied to each of the 5 input dimensions $(x, y, z, \theta, \phi)$.

def positional_encoding(x, L_embed=6):
    """
    Returns tensor representing positional encoding $\gamma(x)$ of `x` with
    `L_embed` corresponding to $L$ in the above.
    """
    rets = [x]
    for i in range(L_embed):
        for fn in [torch.sin, torch.cos]:
            rets.append(fn(2 ** i * x))
    return torch.cat(rets, dim=-1)

Architecture

NeRF is a simple MLP with ReLU activations, concatenations at specific layers, and outputs at different stages shown below:

NeRF Architecture

For training speed, we instead implement a smaller MLP in the same spirit:

class TinyNeRF(nn.Module):
    """
    Implements 4 layer MLP as a tiny example of the NeRF design
    """
    def __init__(self, hidden_dim=128, L_embed=6):
        super().__init__()
        in_dim = 3 + 3 * 2 * L_embed
        self.layer1 = nn.Linear(in_dim, hidden_dim)
        self.layer2 = nn.Linear(hidden_dim, hidden_dim)
        self.layer3 = nn.Linear(hidden_dim + in_dim, hidden_dim)
        self.layer4 = nn.Linear(hidden_dim, 4)

    def forward(self, x):
        out = F.relu(self.layer1(x))
        out = F.relu(self.layer2(out))
        out = F.relu(self.layer3(torch.cat([out, x], dim=-1)))
        out = self.layer4(out)
        return out

Volume Rendering

Consider a camera ray $\mathbf r(t) = \mathbf o + t \mathbf d$, with origin $\mathbf o$ and direction $\mathbf d$. If each 3D point along this ray is associated with a color $\mathbf c(\mathbf r(t), \mathbf d)$ and density $\sigma(\mathbf r(t)$, then the authors render the expected color at $\mathbf r(t)$ as

$$C(\mathbf r) = \int_{t_n}^{t_f} T(t) \sigma(\mathbf r(t)) \mathbf c(\mathbf r(t), \mathbf d) dt,$$

where

$$T(t) = \exp \left( - \int_{t_n}^t \sigma(\mathbf r(s)) ds \right),$$

and $t_n$ and $t_f$ are the near and far bounds of what we wish to render. We can interpret $T(t)$ as the probability that the ray travels from $t_n$ to $t$ without hitting any other particle.

This formulation is continuous, so the authors discretize it with stratified sampling: divide the interval $[t_n, t_f]$ into $N$ even bins, and then sample uniformly over each bin. The sampling is critical so we can roughly cover the whole interval over the course of training. This yields the discretization

$$\hat C(\mathbf r) = \sum_{i=1}^N T_i (1 - \exp(- \sigma_i \delta_i)) \mathbf c_i,$$

with

$$T_i = \exp \left( - \sum_{j=1}^{i-1} \sigma_j \delta_j \right),$$

and $\delta_i = t_{i+1} - t_i$ as the difference series between sample points.

def render_rays(
    model, rays_o, rays_d, near, far, N_samples, encoding_fn, rand=True
):
    """
    Use `model` to render the rays parameterized by `rays_o` and `rays_d`
    between `near` and `far` limits with `N_samples`.
    """
    # sample query pts
    z_vals = torch.linspace(near, far, N_samples).to(rays_o)
    if rand:
        z_vals = (
            torch.rand(list(rays_o.shape[:-1]) + [N_samples])
            * (far - near) / N_samples
        ).to(rays_o) + z_vals
    pts = rays_o[..., None, :] + rays_d[..., None, :] * z_vals[..., :, None]

    # run query pts through model to get radiance fields
    pts_flat = pts.reshape((-1, 3))
    encoded_pts_flat = encoding_fn(pts_flat)
    batches = batch_generator(encoded_pts_flat, batch_size=BATCH_SIZE)
    preds = []
    for batch in batches:
        preds.append(model(batch))
    radiance_fields_flat = torch.cat(preds, dim=0)
    radiance_fields = torch.reshape(
        radiance_fields_flat, list(pts.shape[:-1]) + [4]
    )

    # compute densities and colors
    sigma_a = F.relu(radiance_fields[..., 3])
    rgb = torch.sigmoid(radiance_fields[..., :3])

    # do volume rendering
    oneE10 = torch.tensor([1e10], dtype=rays_o.dtype, device=rays_o.device)
    dists = torch.cat([
        z_vals[..., 1:] - z_vals[..., :-1],
        oneE10.expand(z_vals[..., :1].shape)
    ], dim=-1)
    alpha = 1 - torch.exp(-sigma_a * dists)
    weights = torch.roll(torch.cumprod(1 - alpha + 1e-10, dim=-1), 1, dims=-1)
    weights[..., 0] = 1
    weights = alpha * weights

    rgb_map = (weights[..., None] * rgb).sum(dim=-2)
    depth_map = (weights * z_vals).sum(dim=-1)
    acc_map = weights.sum(dim=-1)
    return rgb_map, depth_map, acc_map

Loss Function and Optimizer

The authors formulate a simple loss function as the total squared error between the rendered and ground truth RGB image values. The authors use the Adam optimizer with default parameters and learning rate that begins at $5 \times 10^{-4}$ and exponentially decays to $5 \times 10^{-5}$.

Modifications

Training NeRF

Finally we train NeRF! The training cell below should take around five minutes to run (with GPU runtime).

# define parameters
NUM_ENCODING_FUNCTIONS = 6
NEAR = 2
FAR = 6
DEPTH_SAMPLES = 64
LEARNING_RATE = 5e-3
BATCH_SIZE = 16384
NUM_EPOCHS = 1000
DISPLAY_EVERY = 100
HEIGHT, WIDTH = images.shape[1:3]
FOCAL = data['focal']
SEED = 42
torch.manual_seed(SEED)
np.random.seed(SEED)

# initialize encoding function, model, loss, and optimizer
encoding_fn = lambda x: positional_encoding(x, L_embed=NUM_ENCODING_FUNCTIONS)
model = TinyNeRF(L_embed=NUM_ENCODING_FUNCTIONS)
model.to(device)
loss_fn = nn.MSELoss(reduction='sum')
optimizer = torch.optim.Adam(model.parameters(), lr=LEARNING_RATE)

# for plotting the loss and iteration during training
psnrs = []
iternums = []

for i in range(NUM_EPOCHS + 1):
    # sample an image from our training set
    img_idx = np.random.randint(images.shape[0])
    target = images[img_idx].to(device)
    pose = poses[img_idx].to(device)

    # get the rays passing through the image and forward pass the model
    rays_o, rays_d = get_rays(HEIGHT, WIDTH, FOCAL, pose)
    rgb, _, _ = render_rays(
        model, rays_o, rays_d, near=NEAR, far=FAR, N_samples=DEPTH_SAMPLES,
        encoding_fn=encoding_fn
    )

    # backward pass
    loss = loss_fn(rgb, target)
    loss.backward()
    optimizer.step()
    optimizer.zero_grad()

    # plot the model's render of the test image and loss at each iteration
    if i % DISPLAY_EVERY == 0:
        rays_o, rays_d = get_rays(HEIGHT, WIDTH, FOCAL, testpose)
        rgb, _, _ = render_rays(
            model, rays_o, rays_d, near=NEAR, far=FAR, N_samples=DEPTH_SAMPLES,
            encoding_fn=encoding_fn
        )
        loss = loss_fn(rgb, testimg)
        print(f"Loss: {loss.item()}")
        psnr = -10 * torch.log10(loss)
        psnrs.append(psnr.item())
        iternums.append(i)

        plt.figure(figsize=(10,4))
        plt.subplot(121)
        plt.imshow(rgb.detach().cpu().numpy())
        plt.title(f'Iteration: {i}')
        plt.subplot(122)
        plt.plot(iternums, psnrs)
        plt.title('PSNR')
        plt.show()

print('Done')

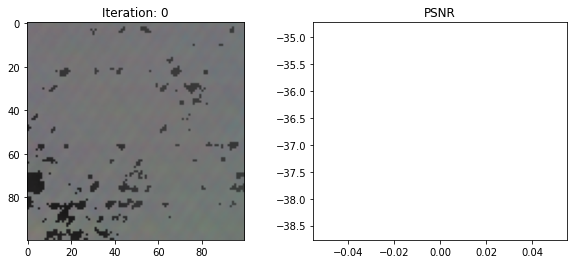

Loss: 4723.73193359375

png

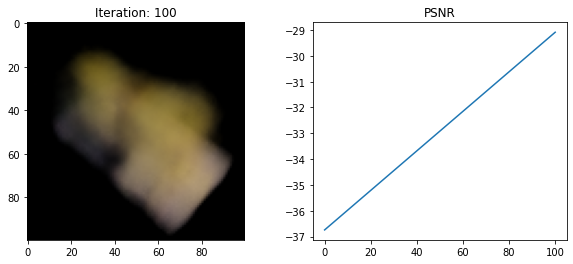

Loss: 810.0624389648438

png

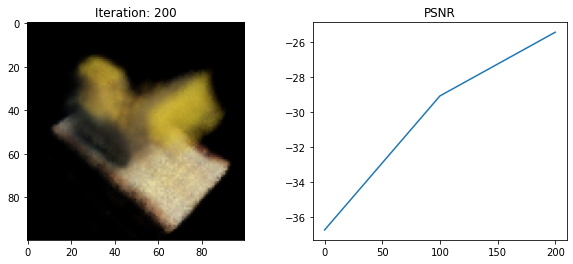

Loss: 350.3409423828125

png

Loss: 266.93646240234375

png

Loss: 237.03475952148438

png

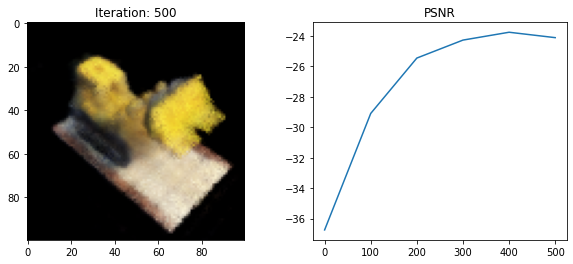

Loss: 257.222412109375

png

Loss: 234.47674560546875

png

Loss: 208.49533081054688

png

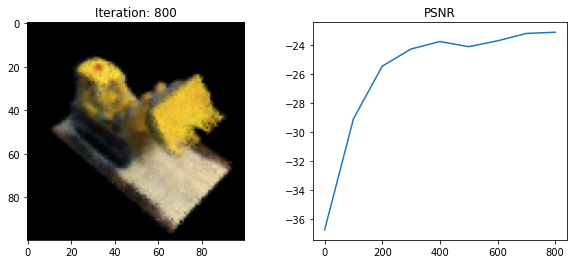

Loss: 204.55020141601562

png

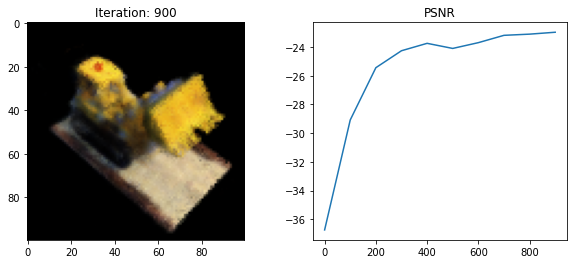

Loss: 198.4183349609375

png

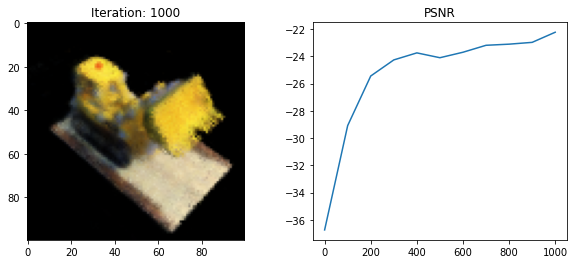

Loss: 167.22586059570312

png

Done

Render 3D Video

Looks great! Let’s make a video of our result.

# define some transformation tensors for translations and rotations about
# different axes
trans_t = lambda t : torch.tensor([
    [1,0,0,0],
    [0,1,0,0],
    [0,0,1,t],
    [0,0,0,1],
], dtype=torch.float32)

rot_phi = lambda phi : torch.tensor([
    [1,0,0,0],
    [0,np.cos(phi),-np.sin(phi),0],
    [0,np.sin(phi), np.cos(phi),0],
    [0,0,0,1],
], dtype=torch.float32)

rot_theta = lambda th : torch.tensor([
    [np.cos(th),0,-np.sin(th),0],
    [0,1,0,0],
    [np.sin(th),0, np.cos(th),0],
    [0,0,0,1],
], dtype=torch.float32)


def pose_spherical(theta, phi, radius):
    """
    Compute a transformation tensor for a spherical coordinates
    (`theta`, `phi`, `radius`)
    """
    c2w = trans_t(radius)
    c2w = rot_phi(phi/180.*np.pi) @ c2w
    c2w = rot_theta(theta/180.*np.pi) @ c2w
    c2w = np.array([[-1,0,0,0],[0,0,1,0],[0,1,0,0],[0,0,0,1]]) @ c2w.numpy()
    return c2w

# run poses that encircle the object through our trained model and make a video
frames = []
for th in np.linspace(0., 360., 120, endpoint=False):
    c2w = pose_spherical(th, -30, 4)
    c2w = torch.from_numpy(c2w).to(device).float()
    rays_o, rays_d = get_rays(HEIGHT, WIDTH, FOCAL, c2w[:3,:4])
    rgb, _, _ = render_rays(
        model, rays_o, rays_d, NEAR, FAR, N_samples=DEPTH_SAMPLES,
        encoding_fn=encoding_fn
    )
    frames.append((255*np.clip(rgb.cpu().detach().numpy(),0,1)).astype(np.uint8))

import imageio
f = 'video.mp4'
imageio.mimwrite(f, frames, fps=30, quality=7)

WARNING:root:IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (100, 100) to (112, 112) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to None (risking incompatibility). You may also see a FFMPEG warning concerning speedloss due to data not being aligned.

# embed the video in the notebook
from IPython.display import HTML
from base64 import b64encode
mp4 = open('video.mp4','rb').read()
data_url = "data:video/mp4;base64," + b64encode(mp4).decode()
HTML("""
<video width=400 controls autoplay loop>
      <source src="%s" type="video/mp4">
</video>
""" % data_url)

Extensions

Tying this back to GANs, many papers have found success in applying NeRFs to 3D aware GANs. This is a very active research area, so here’s a couple pointers:

For more general improvements on this technique, Frank Dellaert put together a great anthology.
